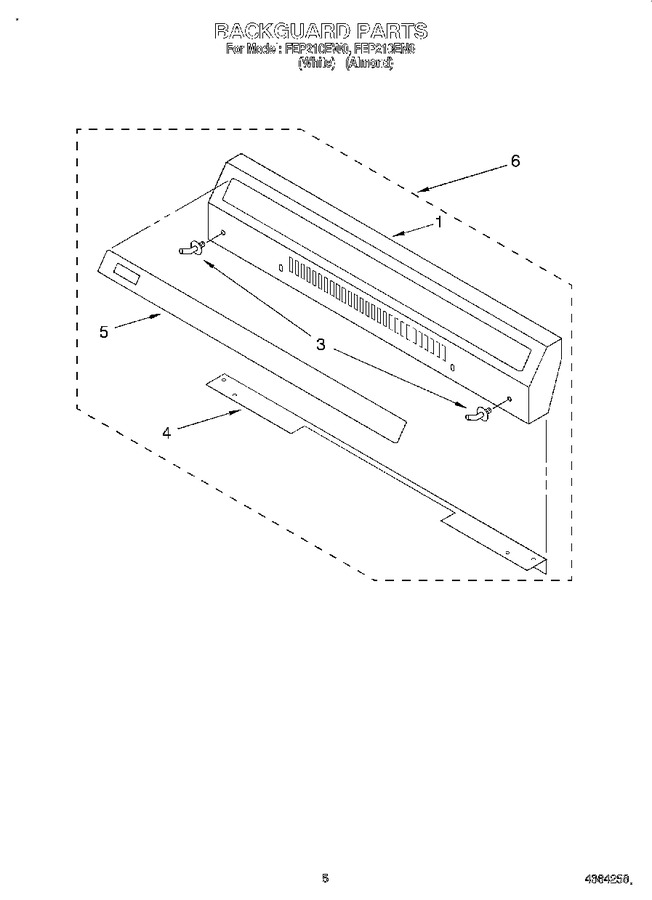

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4364243 | Backguard (includes No.5) (white) |
|
- | |||||
| 1 | 4364244 | Backguard (includes No.5) (almond) |
|
- | |||||
| 3 | 4364102 | Hinge Pin (2) |
|
- | |||||
| 4 | 4364245 | Support, Backguard |
|
- | |||||
| 5 | 4364104 | Overlay, Backguard |
|
- | |||||
| 6 | 4364113 | Backguard Assy. |
|
- | |||||
| 6 | W11233072 | Screw, No.8 X 1/2 (Replaces: 4364121) |
|
Immediately | $ 13.25 | ||||
| 6 | 4364046 | Wingnut, 10-24 |
|
- | |||||
| 6 | 4364040 | Use & Care Guide |
|
- |
