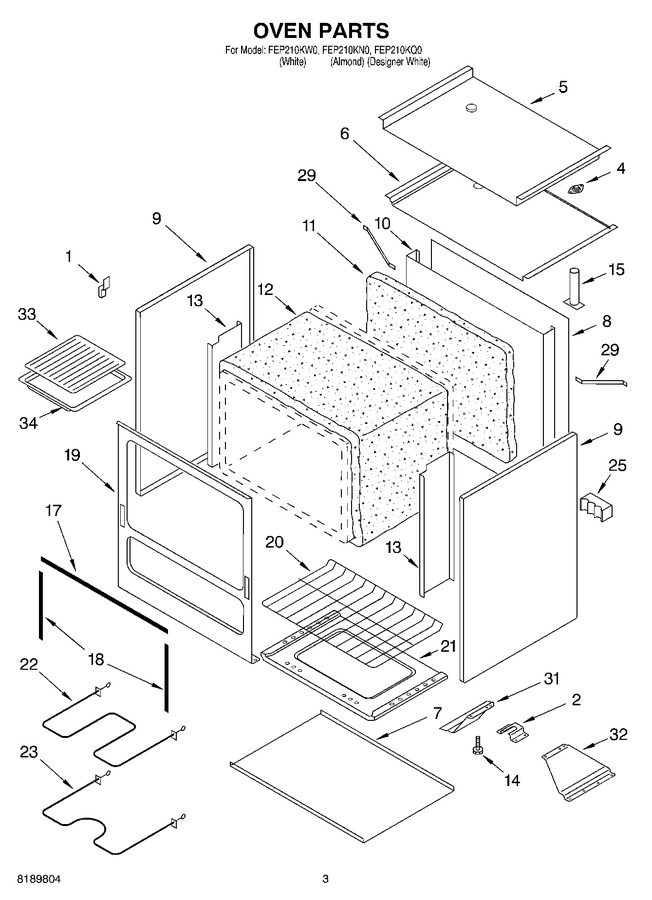

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Oven Door


03 - Oven


04 - Backguard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364130		Clip, Thermo Bulb		Appelez-nous	-
2	8190785		Anti-tip Kit   (Replaces: 4364088)		Appelez-nous	-
4	4364246		Screw, No.8 X 1/2		Appelez-nous	-
4	4364176		Switch, Limit				$ 198.31
5	4364197		Bottom, Upper Box		Appelez-nous	-
5	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
6	4364255		Screw, No.10 X 1/2		Appelez-nous	-
6	4364198		Bottom, Lower Box		Appelez-nous	-
7	4364153		Screw, 10-12 X 1/2		Appelez-nous	-
7	4364246		Screw, No.8 X 1/2		Appelez-nous	-
7	4364199		Bottom, Main		Appelez-nous	-
8	4364153		Screw, 10-12 X 1/2		Appelez-nous	-
8	4364200		Cover, Rear		Appelez-nous	-
9	4364201		Panel, Side (white)		Appelez-nous	-
9	4364202		Panel, Side (almond)		Appelez-nous	-
10	4364203		Back, Main		Appelez-nous	-
10	4364153		Screw, 10-12 X 1/2		Appelez-nous	-
11	4364204		Insulation, Back		Appelez-nous	-
12	4364205		Insulation, Wrap		Appelez-nous	-
13	4364206		Baffle, Inner Side		Appelez-nous	-
14	W11673271		Leg, Leveler   (Replaces: 4364080)				$ 28.46
15	4364207		Vent, Oven Tube		Appelez-nous	-
17	4364084		Gasket, Oven Top		Appelez-nous	-
18	4364208		Gasket, Oven Side		Appelez-nous	-
19	4364209		Frame, Front		Appelez-nous	-
20	4364210		Rack, Oven		Appelez-nous	-
21	4364211		Bottom, Oven		Appelez-nous	-
22	4364185		Element, Broil				$ 65.48
22	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
23	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
23	4364186		Element, Bake				$ 71.53
25	4364257		Hex Nut, 10-32		Appelez-nous	-
25	WPW10245259		Block, Terminal   (Replaces: 4364187)			Immediately	$ 31.65
25	4364256		Screw, 8a X 1		Appelez-nous	-
29	4364153		Screw, 10-12 X 1/2		Appelez-nous	-
29	4364212		Brace, Back		Appelez-nous	-
31	4364214		Support, Rt. Rear		Appelez-nous	-
32	4364215		Support, Lt. Rear		Appelez-nous	-
33	4364065		Grill, Broiler		Appelez-nous	-
34	4364216		Pan, Broiler		Appelez-nous	-
