SELECT A DIAGRAM

01 - External Oven, Lit/optional


02 - Internal Oven


03 - Backguard

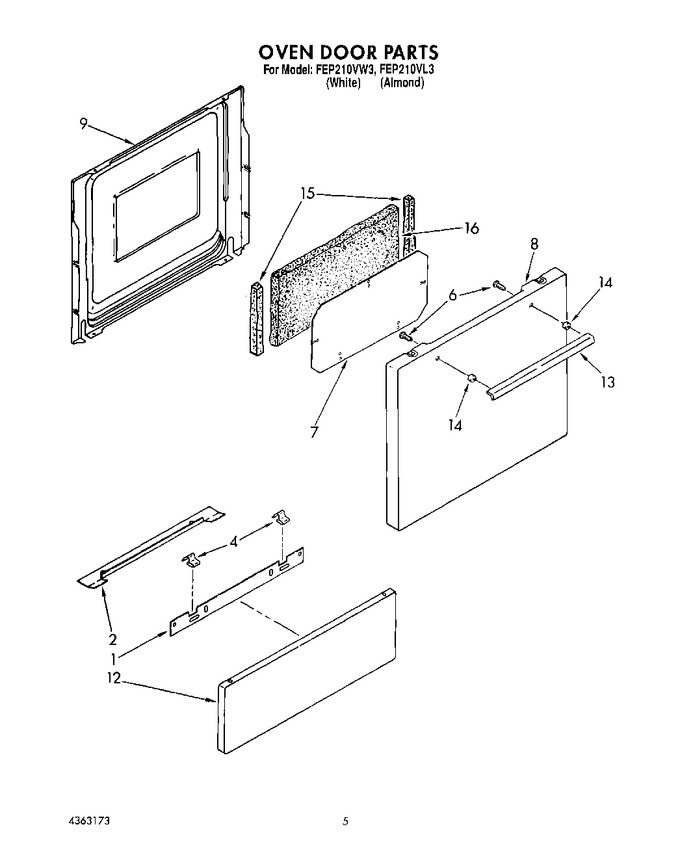

04 - Oven Door


05 - Cooktop And Manifold


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4157957		Support, Clip		Appelez-nous	-
2	4157958		Bracket		Appelez-nous	-
4	4157959		Clip		Appelez-nous	-
6	4320579		Screw, Handle (2)		Appelez-nous	-
7	4157931		Baffle		Appelez-nous	-
8	4363043		Panel, Door (white)		Appelez-nous	-
8	4363037		Panel, Door (almond)		Appelez-nous	-
9	4315068		Liner, Door		Appelez-nous	-
12	4315505		Panel, Bottom (white)		Appelez-nous	-
12	4315506		Panel, Bottom (almond)		Appelez-nous	-
13	4157794		Handle		Appelez-nous	-
14	4157041		Spacer (2)		Appelez-nous	-
15	4179307		Insulation, Strip (2)		Appelez-nous	-
16	4179320		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
