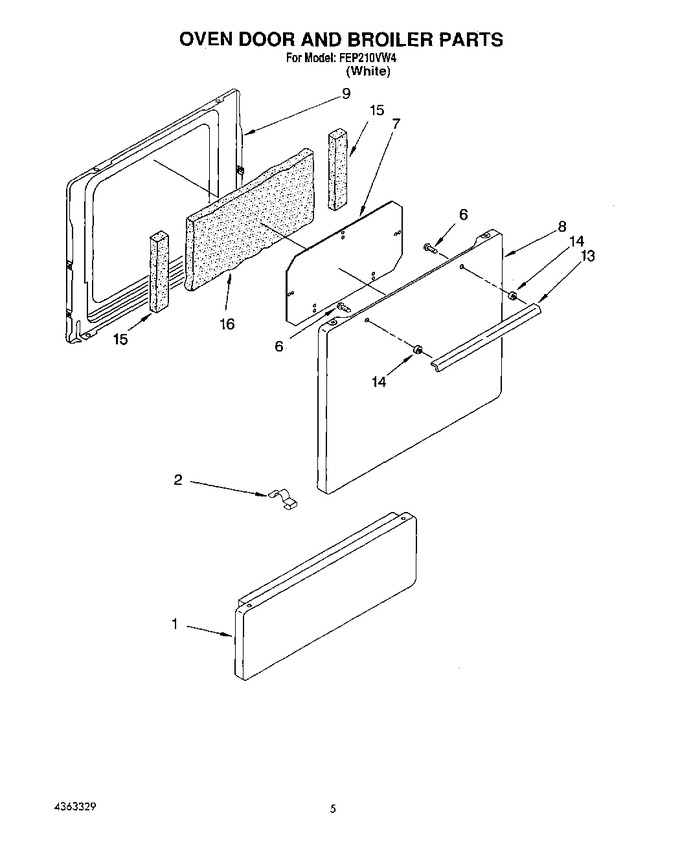

04 - Oven Door And Broiler
05 - Cooktop And Manifold
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4363326 | Panel, Bottom |
|
- | |||||
| 2 | 4157959 | Clip, Panel (2) |
|
- | |||||
| 6 | 4320579 | Screw, Handle (2) |
|
- | |||||
| 7 | 4157931 | Baffle |
|
- | |||||
| 8 | 4363043 | Panel, Door (white) |
|
- | |||||
| 9 | 4315068 | Liner, Door |
|
- | |||||
| 13 | 4157794 | Handle |
|
- | |||||
| 14 | 4157041 | Spacer (2) |
|
- | |||||
| 15 | 4179307 | Insulation, Strip (2) |
|
- | |||||
| 16 | 4179320 | Insulation |
|
- |
