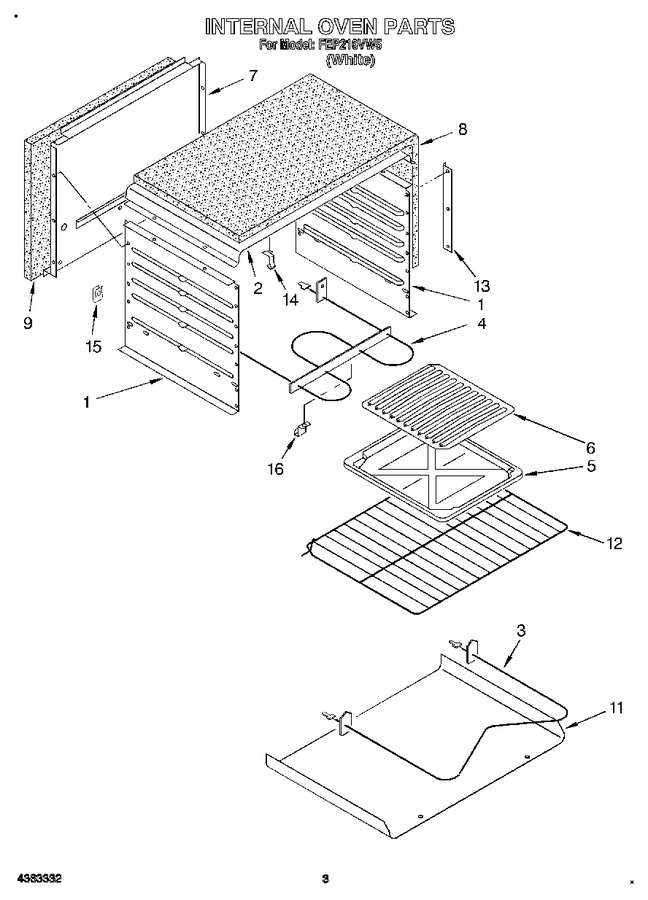

02 - Internal Oven


03 - Backguard


04 - Oven Door And Broiler


05 - Cooktop And Manifold


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
1	4315753		Liner, Oven Side (2)		Appelez-nous	-
2	4315047		Liner, Oven Top		Appelez-nous	-
2	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157111)			Immediately	$ 7.87
3	4179056		Element, Bake		Appelez-nous	-
4	4157977		Element, Broiler		Appelez-nous	-
5	4396923		Pan, Broiler   (Replaces: 4315095)			Immediately	$ 60.71
6	4315094		Grid, Broiler		Appelez-nous	-
7	4315059		Liner, Oven Back		Appelez-nous	-
8	WPW10208653		Insulation, Oven Wrap   (Replaces: 4157665)			Immediately	$ 55.47
9	4363054		Insulation, Oven Back		Appelez-nous	-
11	4315076		Bottom, Oven		Appelez-nous	-
12	4362870		Rack, Oven		Appelez-nous	-
13	4157328		Support, Liner (2)		Appelez-nous	-
14	98005642		Clip, Thermo Bulb   (Replaces: 4157329)			Immediately	$ 87.08
15	4157330		Clip, Speed		Appelez-nous	-
16	4157967		Support, Broiler		Appelez-nous	-
