SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Internal Oven


05 - External Oven, Optional


06 - Wiring Harness

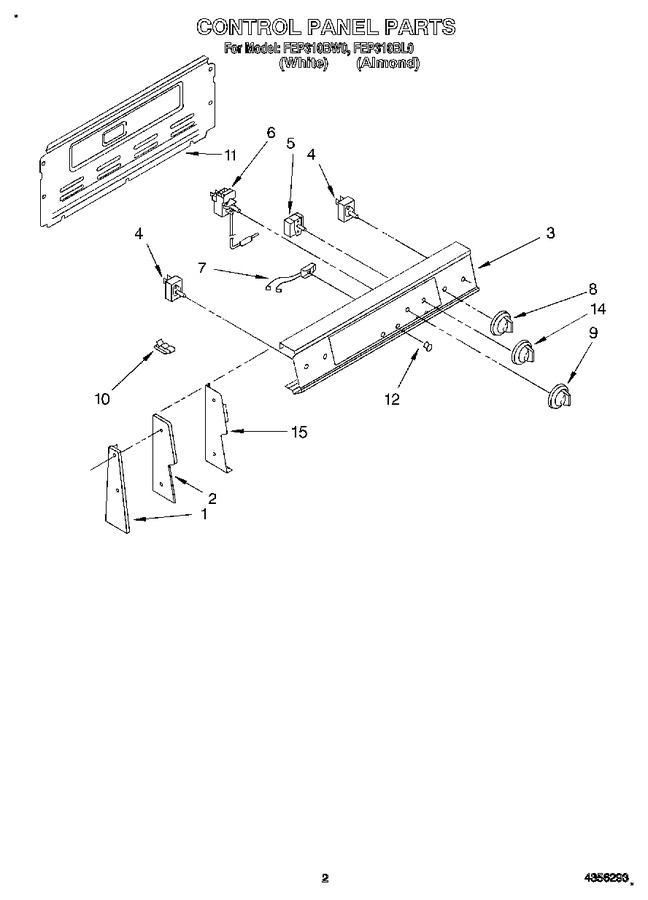

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187671		End Trim (right)		Appelez-nous	-
1	3169366		End Trim (screw, 8 X 5/8 (2))		Appelez-nous	-
1	3187672		End Trim (left)		Appelez-nous	-
2	3150441		End Cap R.h.		Appelez-nous	-
2	3150442		End Cap L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
3	3187655		Panel, Control		Appelez-nous	-
3	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
4	5500-287		Switch, Infinite (use W/8`` Surface Unit (1))   (Replaces: 3148953)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/6`` Surface Unit (3))   (Replaces: 3148951)			Immediately	$ 52.39
4	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
5	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
5	3150430		Switch, Selector (3 Position)				$ 66.71
6	3169302		Thermostat				$ 193.75
6	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
7	3150647		Light, Indicator (surface Unit On)		Appelez-nous	-
7	314031		Light, Indicator (oven On)				$ 62.88
8	WP3149983		Knob, Control (4) (infinite Switch)   (Replaces: 3149983)				$ 23.23
9	3149987		Knob, Control (thermostat)				$ 25.12
10	313570		Tube Clip		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (18)   (Replaces: 343641)			Immediately	$ 7.85
11	3187332		Rear Cover Control Panel		Appelez-nous	-
12	313101		Lens, Amber (2)		Appelez-nous	-
14	3149984		Knob, Control (selector)		Appelez-nous	-
15	WP965173		Screw, No.8 X 3/8 (3)   (Replaces: 965173)			Immediately	$ 10.72
15	313608		Shield (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
