01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:

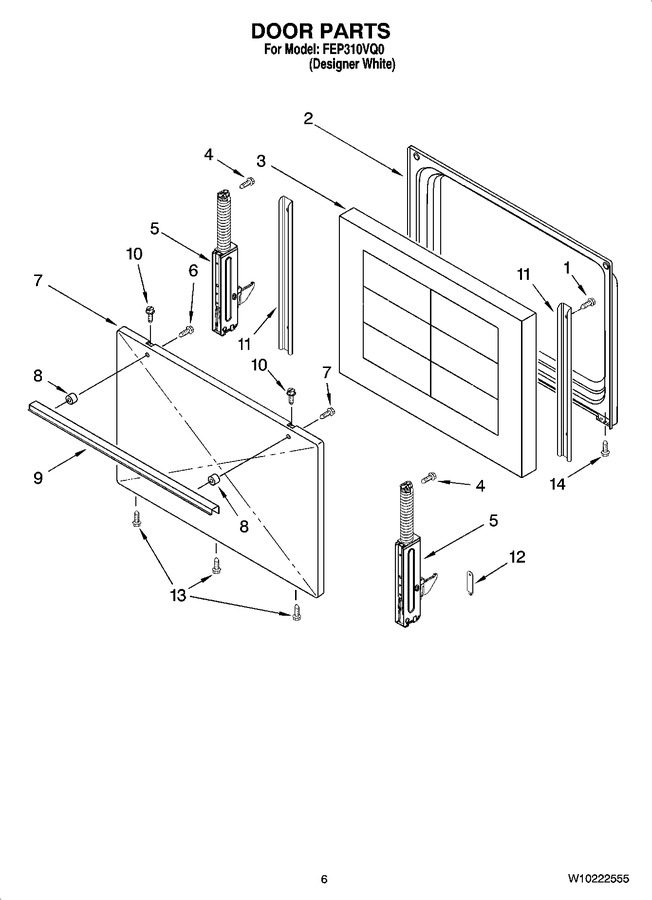

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 2 | 9761342 | Liner |
|
- | |||||
| 3 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 101.37 | ||||
| 4 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 5 | W10368723 | Hinge (2) (Replaces: 9761495) |
|
- | |||||
| 6 | WP3196163 | Screw (Replaces: 3196163) |
|
$ 7.30 | |||||
| 7 | W10903447 | Panel, Steel (white) (Replaces: 3195560) |
|
$ 254.71 | |||||
| 8 | WP3196143 | Spacer, Handle (white) (Replaces: 3196143) |
|
$ 7.30 | |||||
| 9 | WP3195263 | Handle, Oven Door (white) (Replaces: 3195263) |
|
$ 206.65 | |||||
| 10 | 3196558 | Screw, Top (white) |
|
- | |||||
| 11 | W11699790 | Brkt-door (Replaces: 9761504) |
|
- | |||||
| 12 | 9761517 | Clip, Door Mntg |
|
$ 48.11 | |||||
| 13 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 14 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WP3196154 | Screw, Grnd-cktop (Replaces: 3196154) |
|
$ 8.44 | ||||||
| WP3196174 | Screw, Grnd-back (Replaces: 3196174) |
|
Immediately | $ 8.44 | |||||
| 3184020 | Wire, Ground (Replaces: 311227) |
|
$ 86.92 | ||||||
| 313660 | Clip, Ground Wire |
|
- | ||||||
| W11244557 | Screw, Ground (Replaces: 3196173) |
|
$ 14.29 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 87.22 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| 4392900 | Paint, Bulk (1 Qt.) (almond (uncut)) |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| 511873 | Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.)) |
|
$ 51.75 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 59.89 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 3184478 | Cleaner, Glass |
|
- | ||||||
| 4396923 | Pan - Broiler |
|
Immediately | $ 60.71 | |||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 28.54 | |||||
| W11616883 | Harness, Main (Replaces: W10113076) |
|
$ 176.90 | ||||||
| W11396691 | Harness, Surface Units (Replaces: W10196280) |
|
$ 189.76 | ||||||
| W11396691 | Harness, Cooktop (Replaces: 9761476) |
|
$ 189.76 |
