SELECT A DIAGRAM

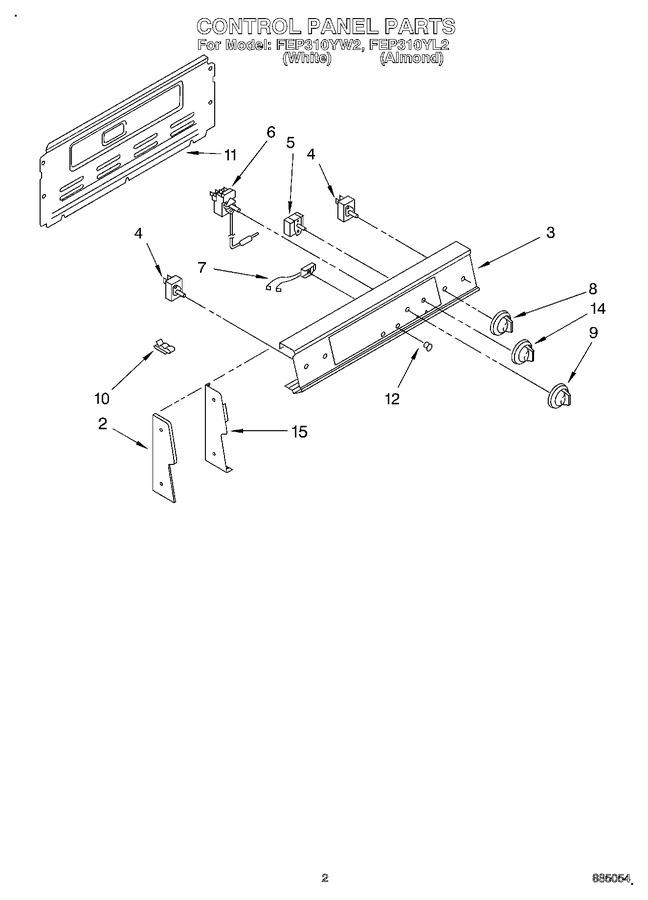

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Internal Oven


05 - External Oven, Optional


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3183465		End Cap L.h.		Appelez-nous	-
2	3162918		Screw, 8a X 3/8 (4)		Appelez-nous	-
2	3183466		End Cap R.h.		Appelez-nous	-
3	3183467		Panel, Control		Appelez-nous	-
3	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
4	5500-287		Switch, Infinite (use W/6`` Surface Unit (3))   (Replaces: 3148951)			Immediately	$ 52.39
4	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/8`` Surface Unit (1))   (Replaces: 3148953)			Immediately	$ 52.39
5	3150430		Switch, Selector (3 Position)				$ 66.71
5	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
6	661150		Thermostat		Appelez-nous	-
6	311498		Thermostat (alt.)		Appelez-nous	-
6	310864		Thermostat (alt.)		Appelez-nous	-
7	314031		Light, Indicator (oven On)				$ 62.88
7	3150647		Light, Indicator (surface Unit On (includes No.12))		Appelez-nous	-
8	WP3149983		Knob, Control (4) (infinite Switch)   (Replaces: 3149983)				$ 23.23
9	3149987		Knob, Control (thermostat)				$ 25.12
10	313570		Tube Clip		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (18)   (Replaces: 343641)			Immediately	$ 7.85
11	3187332		Rear Cover Control Panel		Appelez-nous	-
12	313101		Lens, Amber (2)		Appelez-nous	-
14	3149984		Knob, Control (selector)		Appelez-nous	-
15	WP681414		Shield (2) (screw, No.8 X 3/8 (2))   (Replaces: 343641)			Immediately	$ 7.85
15	3184353		Shield (2) (l.h.)		Appelez-nous	-
15	3184354		Shield (2) (r.h.)		Appelez-nous	-
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60

    View Diagram in Separate Window       Print Part List
