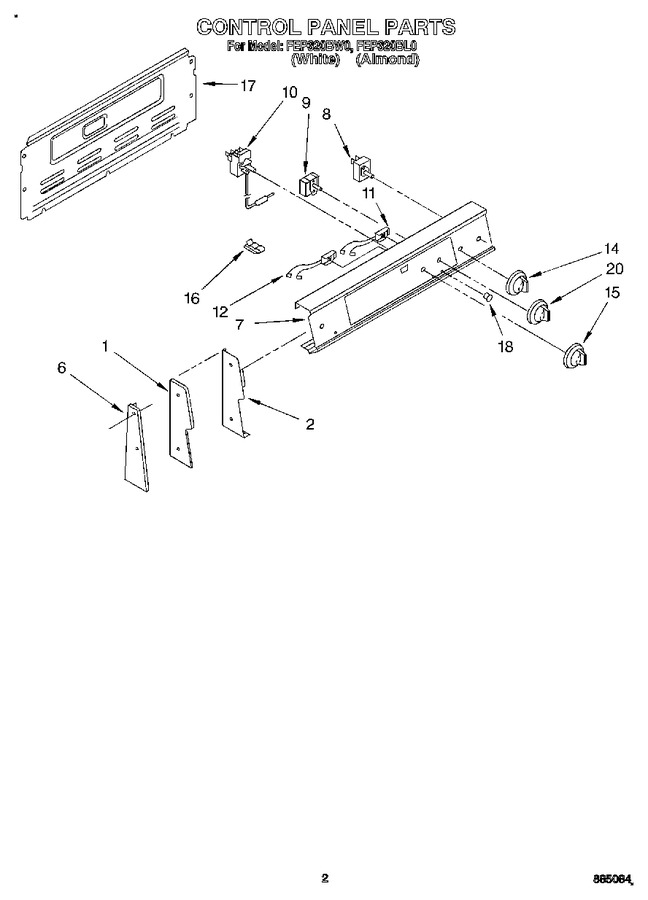

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Oven


04 - Door And Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	254225		Screw, 8 X 3/8 (4)		Appelez-nous	-
1	3150441		End Cap R.h.		Appelez-nous	-
1	3150442		End Cap L.h.		Appelez-nous	-
2	313608		Shield, L Or R (2)		Appelez-nous	-
2	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
6	3169366		End Trim (screw, (2) 8-18 X 5/8)		Appelez-nous	-
6	3187671		End Trim (right)		Appelez-nous	-
6	3187672		End Trim (left)		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
7	3187655		Panel, Control		Appelez-nous	-
8	5500-287		Switch, Infinite (8`` Element (1))   (Replaces: 3148953)			Immediately	$ 52.39
8	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
8	5500-287		Switch, Infinite (6`` Element (3))   (Replaces: 3148951)			Immediately	$ 52.39
9	3150430		Switch, Selector				$ 66.71
9	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
10	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
10	3169302		Thermostat, Oven				$ 193.75
11	314031		Light, Indicator (oven)				$ 62.88
12	3150647		Light, Indicator (surface Unit)		Appelez-nous	-
14	WP3149983		Knob, (4) (infinite Switch) (white/almond Mdl.)   (Replaces: 3149983)				$ 24.39
15	3149987		Knob (therm) (white/almond Mdl.)				$ 25.12
16	313570		Tube Clip		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
17	3187332		Rear Cover		Appelez-nous	-
18	313101		Lens, Amber (2)		Appelez-nous	-
20	3149984		Knob, Selector		Appelez-nous	-
