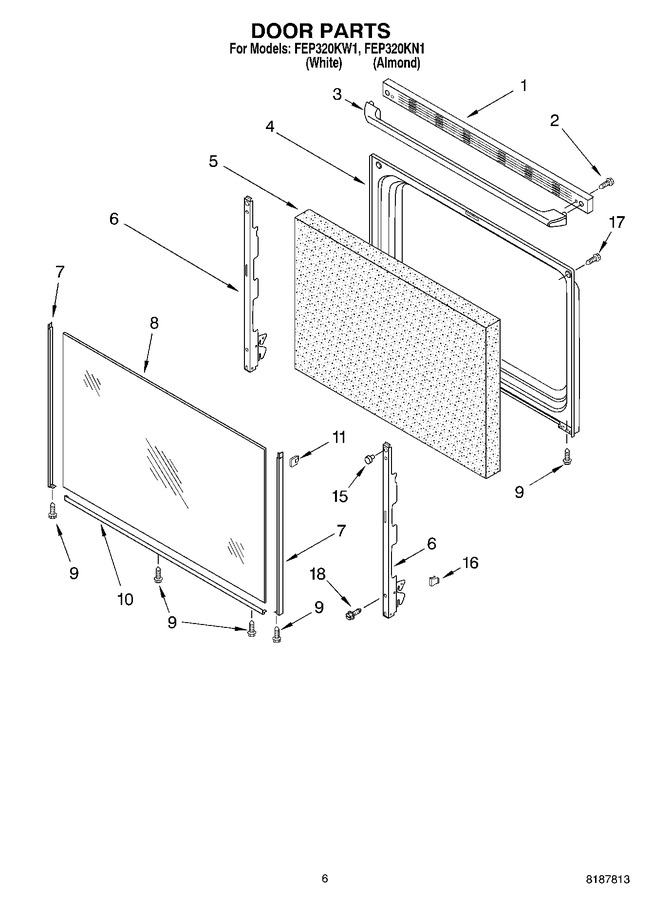

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3196819 | Trim, Top |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 11.03 | ||||
| 3 | WPW10202217 | Handle, Door (Replaces: 3195213) |
|
$ 270.65 | |||||
| 4 | 3186294 | Liner, Door |
|
- | |||||
| 5 | 8523141 | Insulation, Door |
|
- | |||||
| 6 | 8053809 | Hinge, Door (2) |
|
- | |||||
| 7 | W10761014 | Trim, Door (right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 7 | W10761018 | Trim, Door (left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 8 | 3195610 | Glass, Door |
|
- | |||||
| 9 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8523177 | Trim, Lower (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 11 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 15 | 238614 | Bumper, Door (2) (Replaces: 3195809) |
|
$ 84.79 | |||||
| 16 | 3196925 | Clip, Door Stop |
|
$ 9.06 | |||||
| 17 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 8.42 | ||||
| 18 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| N/A | Miscellaneous |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| 8273888A | Anti-tip Kit (Replaces: 3176830) |
|
$ 32.62 | ||||||
| 3196155 | Harness, Cooktop |
|
- | ||||||
| WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | ||||||
| 9757473 | Harness, Oven |
|
- | ||||||
| 3400964 | Clip, Wire Harness (Replaces: 3196520) |
|
$ 89.00 | ||||||
| 3184020 | Wire, Ground (Replaces: 311227) |
|
$ 86.92 | ||||||
| 313660 | Clip, Ground Wire |
|
- | ||||||
| 814381 | Pin Kit-dr Removal |
|
$ 11.28 | ||||||
| 350956 | Paint, Pressurized Spray (12 Oz.) (almond) |
|
$ 54.01 | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 8316781 | Wire, Black 14 Ga. 150 C |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 87.22 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | ||||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 59.89 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Paint, Bulk (1 Qt.) (almond (uncut)) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 3184478 | Cleaner, Glass |
|
- |
