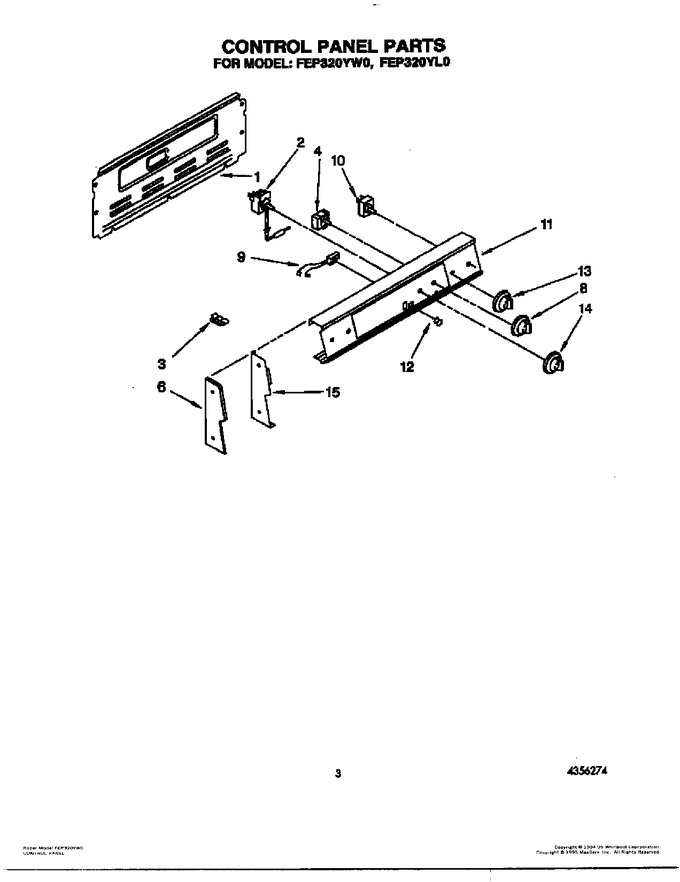

03 - Control Panel


04 - Door And Drawer


05 - Oven


06 - Unit


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
1	313195		Cover, Rear		Appelez-nous	-
2	661150		Thermostat, Oven		Appelez-nous	-
2	311498		(alt.)		Appelez-nous	-
2	WP313808		Screw (2)   (Replaces: 311932)				$ 7.60
2	310864		(alt.)		Appelez-nous	-
3	313570		Clamp, Tube		Appelez-nous	-
4	3150430		Switch, Selector				$ 66.71
4	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
6	3183465		End Cap, R.h. (black)		Appelez-nous	-
6	WP3390631		End Cap, R.h. (screw, 10a X 3/8 (2))   (Replaces: 309112)				$ 7.82
6	WP681414		End Cap, R.h. (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 7.85
6	3183466		End Cap, R.h. (black End Cap, L.h.)		Appelez-nous	-
6	309133		End Cap, R.h. (screw 8a X 5/8 (4))		Appelez-nous	-
8	3149984		Knob, Selector (sel-switch 3 Pos.)		Appelez-nous	-
9	3150647		Light, Indicator (includes No. 12) (surface Unit On)		Appelez-nous	-
9	314031		Light, Indicator (includes No. 12) (oven Unit On)				$ 62.88
10	5500-287		Switch, Infinite (6`` Element (3))   (Replaces: 3148951)			Immediately	$ 52.39
10	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
10	5500-287		Switch, Infinite (8`` Element (1))   (Replaces: 3148953)			Immediately	$ 52.39
11	3183467		Panel, Control		Appelez-nous	-
11	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
12	313101		Lens, Amber (2)		Appelez-nous	-
13	WP3149983		Knob, (4) (infinite Switch) (white/almond)   (Replaces: 3149983)				$ 23.23
14	3149987		Knob, Temperature (white/almond)				$ 25.12
15	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
15	3184354		Shield (r.h.)		Appelez-nous	-
15	3184353		Shield (l.h.)		Appelez-nous	-
