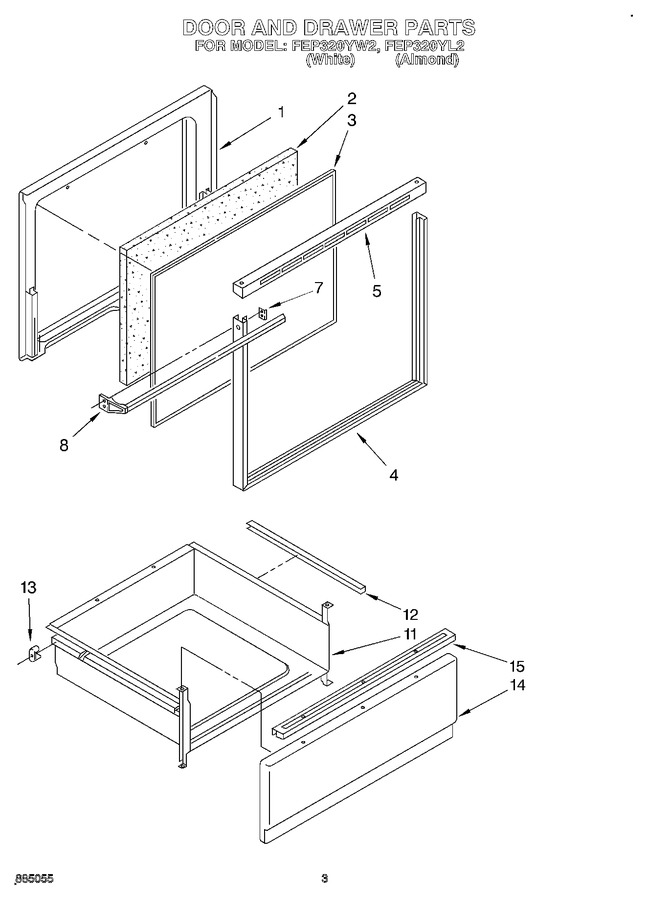

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172221		Liner, Door		Appelez-nous	-
2	WPW10208653		Insulation   (Replaces: 3147953)			Immediately	$ 55.47
3	3148186		Outer Glass Panel (black Glass)		Appelez-nous	-
4	3149333		Screw (3)				$ 5.33
4	3171530		Frame, Panel		Appelez-nous	-
5	3148223		Top, Door (white/almond Mdl.)		Appelez-nous	-
5	3149333		Top, Door (screw (2))				$ 5.33
7	3148282		Clip, Handle (2)				$ 8.69
8	3149242		Handle, Door (black Color)		Appelez-nous	-
8	3149253		Handle, Door (screw (4))		Appelez-nous	-
11	327887		Drawer, Utility		Appelez-nous	-
12	309329		Protector, Drawer Slide (2)		Appelez-nous	-
13	307980		Glide, Rear (2)		Appelez-nous	-
13	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 7.57
14	309923		Panel Drawer (black)		Appelez-nous	-
14	WP488627		Panel, Drawer (screw, 8-18 X 1/2 (2))   (Replaces: 313349)				$ 7.57
15	309029		Screw (2) 8a X 1/2		Appelez-nous	-
15	3184530		Handle, Drawer		Appelez-nous	-
