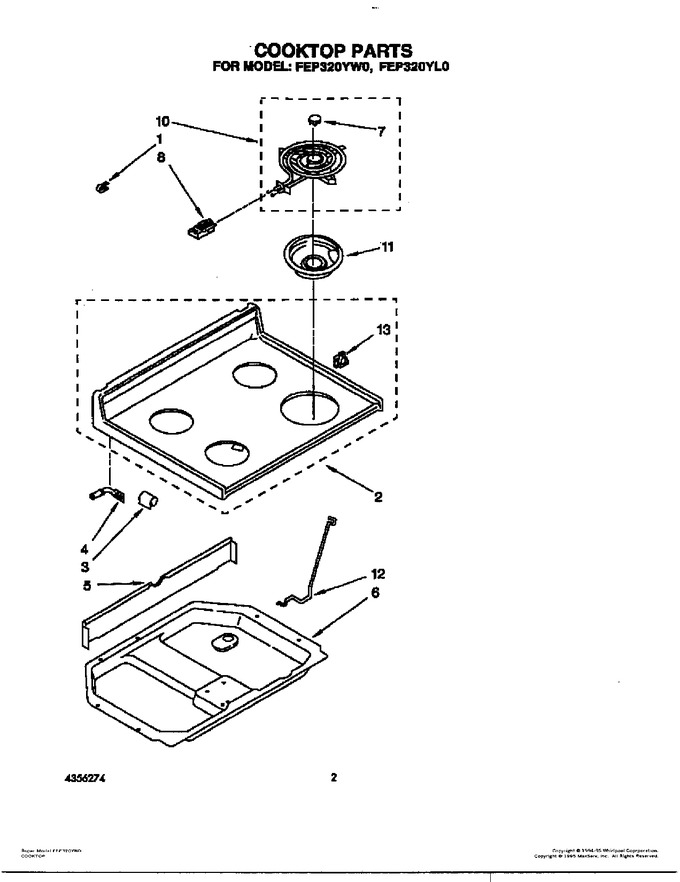

02 - Cooktop


03 - Control Panel


04 - Door And Drawer


05 - Oven


06 - Unit


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.20
1	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
2	3170989		Cooktop (white)		Appelez-nous	-
2	3170990		Cooktop (almond)		Appelez-nous	-
2	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
3	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
3	307965		Bracket, Cooktop		Appelez-nous	-
4	307966		Pin, Hinge (2)		Appelez-nous	-
4	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
5	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
5	307973		Shield, Wiring		Appelez-nous	-
6	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.82
6	3169186		Box, Burner		Appelez-nous	-
7	309926		Medallion (4)		Appelez-nous	-
8	WP313808		Screw, 6-32 X 9/32 (4)   (Replaces: 313808)				$ 7.60
8	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 16.09
10	WP660533		Element, Coil (includes No.7) (8`` (1))   (Replaces: 660530)			Immediately	$ 43.86
10	WP660532		Element, Coil (includes No.7) (6`` (3))   (Replaces: 660528)			Immediately	$ 41.00
10	WP660533		Element, Coil (includes No.7) (alt.)   (Replaces: 313965)			Immediately	$ 43.86
10	WP660533		Element, Coil (includes No.7) (alt.)   (Replaces: 309186)			Immediately	$ 43.86
11	WPW10196406		Pan, Reflector (6`` (3))   (Replaces: 3150246)			Immediately	$ 13.39
11	W10196405RW		Pan, Reflector (8`` (1))   (Replaces: 3150247)			Immediately	$ 20.78
12	3148659		Rod, Cooktop		Appelez-nous	-
13	814102		Nut (4)				$ 5.27
13	814103		Hold Down Clip (4)   (Replaces: 3148790)				$ 10.02
13	00487887		Screw (4)   (Replaces: 487887)				$ 244.80
	LIT3150655		Wiring Diagram		Appelez-nous	-
	LIT3147400		Instructions, Installation		Appelez-nous	-
	LIT3184005		Guide, Use & Care		Appelez-nous	-
	LIT4356274		Repair Parts List		Appelez-nous	-
