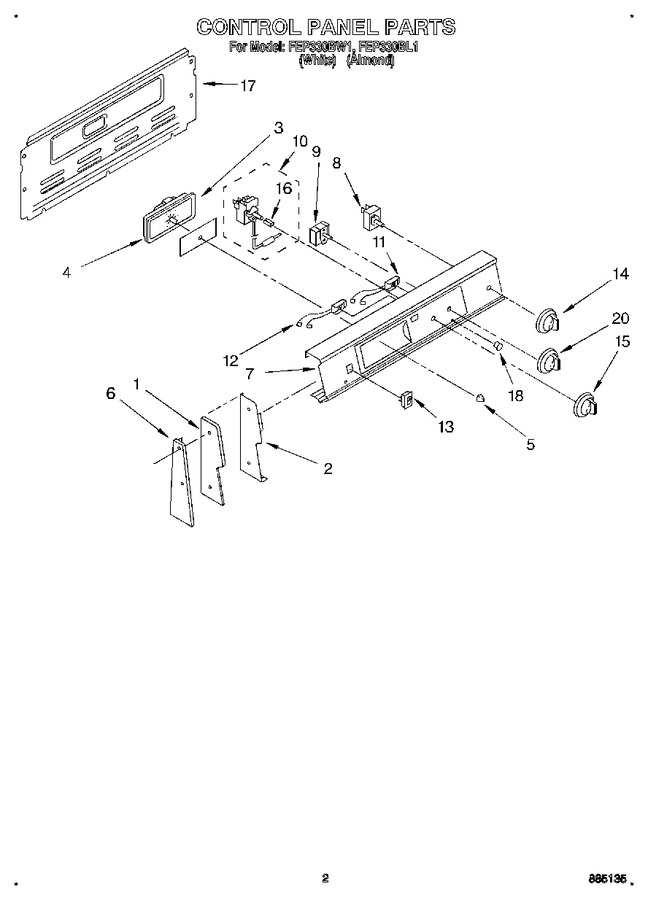

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 254225 | Screw, 8 X 3/8 (4) |
|
- | |||||
| 1 | 3150441 | End Cap R.h. |
|
- | |||||
| 1 | 3150442 | End Cap L.h. |
|
- | |||||
| 2 | WP965173 | Screw, 8 X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 10.72 | ||||
| 2 | 313608 | Shield, L Or R (2) |
|
- | |||||
| 3 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 10.72 | ||||
| 3 | 3169298 | Timer, Clock |
|
- | |||||
| 4 | 3148852 | Glass, Timer |
|
- | |||||
| 5 | 3169182 | Knob, Timer |
|
- | |||||
| 6 | 3187672 | End Trim (left) |
|
- | |||||
| 6 | 3187671 | End Trim (right) |
|
- | |||||
| 6 | 3169366 | End Trim (screw, (2) 8-18 X 5/8) |
|
- | |||||
| 7 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.85 | ||||
| 7 | 3187656 | Panel, Control |
|
- | |||||
| 8 | 5500-287 | Switch, Infinite (6`` Element (2)) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 8 | 308119 | Switch, Infinite (screw, 8-32 X 1/4 (8)) |
|
- | |||||
| 8 | 5500-287 | Switch, Infinite (8`` Element (2)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 9 | 308119 | Screw, 8-32 X 1/4 (2) |
|
- | |||||
| 9 | 3150430 | Switch, Selector |
|
$ 66.71 | |||||
| 10 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 7.60 | |||||
| 10 | 3169302 | Thermostat, Oven |
|
$ 193.75 | |||||
| 11 | 314031 | Light, Indicator (oven) |
|
$ 62.88 | |||||
| 12 | 3150662 | Light, Indicator (surface Unit) |
|
- | |||||
| 13 | WP4314961 | Rocker Switch (Replaces: 3148564) |
|
$ 89.48 | |||||
| 14 | WP3149983 | Knob, (4) Infinite Switch (Replaces: 3149983) |
|
$ 23.23 | |||||
| 15 | 3149987 | Knob, Thermostat |
|
$ 25.12 | |||||
| 16 | 3169525 | Sleeve, Adaptor |
|
- | |||||
| 17 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 17 | 3187332 | Rear Cover |
|
- | |||||
| 18 | 313101 | Lens, Amber (2) |
|
- | |||||
| 20 | 3149984 | Knob, Selector |
|
- |
