SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Oven


04 - Door And Drawer


05 - Wiring Harness, Lit/optional

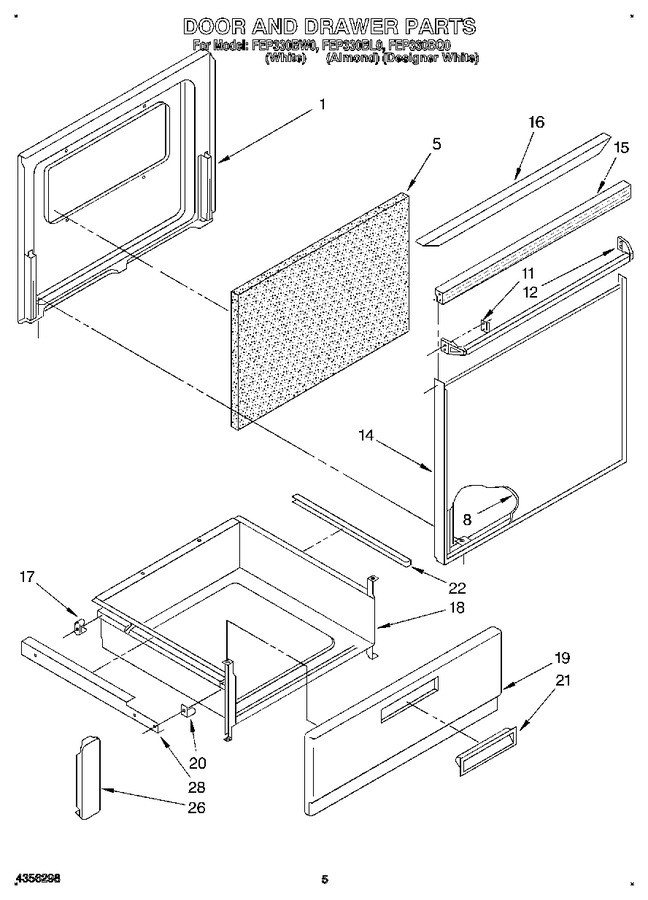

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172221		Liner, Door		Appelez-nous	-
1	307748		Screw, No.10 X 1/2 (6)		Appelez-nous	-
5	WPW10208653		Insulation   (Replaces: 3147953)			Immediately	$ 55.47
8	3149051		(designer Model)		Appelez-nous	-
8	3148186		Glass, Outer		Appelez-nous	-
11	3148282		Clip, Handle (2)				$ 8.69
12	3149253		Screw, (4) 8 X 7/8		Appelez-nous	-
12	3149354		(designer Model)		Appelez-nous	-
12	3149242		Handle, Door		Appelez-nous	-
14	307748		Screw, (4) 10ab X 1/2		Appelez-nous	-
14	3171530		Frame, Door		Appelez-nous	-
14	3148235		(designer Model)		Appelez-nous	-
15	3148223		Top, Door		Appelez-nous	-
15	3149355		(designer Model)		Appelez-nous	-
16	3181363		Cap-top (designer Model)		Appelez-nous	-
16	WP308685		Screw (2)   (Replaces: 3393008)			Immediately	$ 7.87
17	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 3393008)			Immediately	$ 7.87
17	307980		Glide, Rear		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	WP488627		Panel Drawer (screw, 8-18 X 1/2)   (Replaces: 313349)				$ 8.11
19	3150679		Panel, Drawer (black)		Appelez-nous	-
19	3150676		Panel, Drawer (white)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	3149257		Glide, Front (2)		Appelez-nous	-
21	3150612		(designer Model)		Appelez-nous	-
21	3150615		Handle, Drawer		Appelez-nous	-
21	309029		Screw (2) 8a X 1/2		Appelez-nous	-
22	309329		Protector, Drawer (2)		Appelez-nous	-
26	307981		Bracket, Rail (2)		Appelez-nous	-
28	3149255		Rail, Slide (r.h.)		Appelez-nous	-
28	307748		Rail, Slide (screw (2))		Appelez-nous	-
28	3149256		Rail, Slide (l.h. (includes No. 20))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
