SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Oven


04 - Door And Drawer


05 - Wiring Harness, Lit/optional

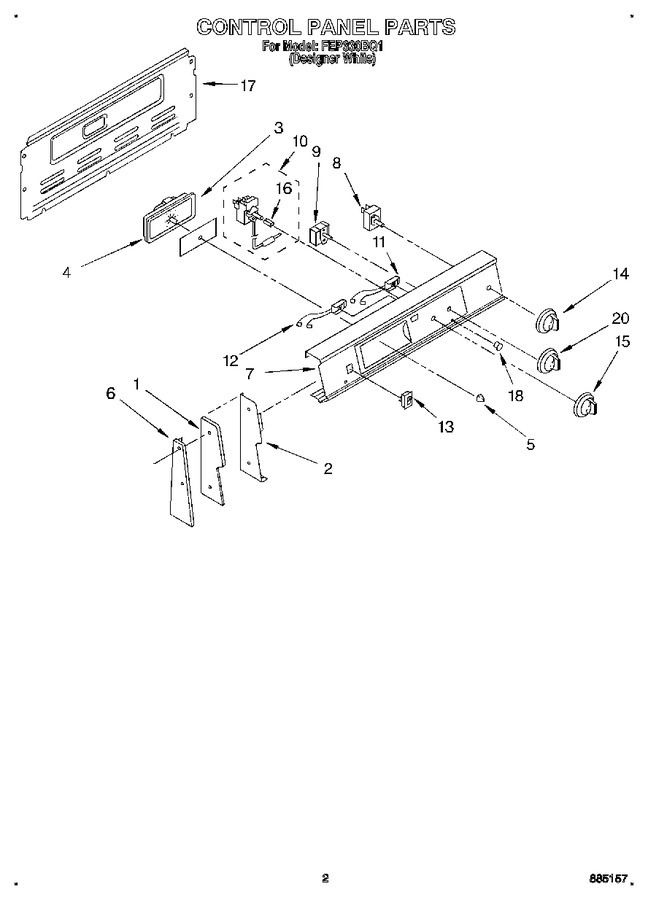

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313231		End Cap (left)		Appelez-nous	-
1	254225		End Cap (screw, 8 X 3/8 (4))		Appelez-nous	-
1	313230		End Cap (right)		Appelez-nous	-
2	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
2	313608		Shield, L Or R (2)		Appelez-nous	-
3	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
3	3169299		Timer, Clock		Appelez-nous	-
4	3148852		Glass, Timer		Appelez-nous	-
5	3169184		Knob, Timer		Appelez-nous	-
6	3188996		End Trim (screw, (2) 8-18 X 5/8)		Appelez-nous	-
6	3188993		End Trim (left)		Appelez-nous	-
6	3188992		End Trim (right)		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
7	3169443		Panel, Control		Appelez-nous	-
8	5500-287		Switch, Infinite (6`` Element (2))   (Replaces: 3148951)			Immediately	$ 52.39
8	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
8	5500-287		Switch, Infinite (8`` Element (2))   (Replaces: 3148953)			Immediately	$ 52.39
9	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
9	3150430		Switch, Selector				$ 66.71
10	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
10	3169302		Thermostat, Oven				$ 193.75
11	314031		Light, Indicator (oven)				$ 62.88
12	3150662		Light, Indicator (surface Unit)		Appelez-nous	-
13	3149360		Rocker Switch				$ 89.01
14	WP3149983		Knob, (4) Infinite Switch   (Replaces: 3150345)				$ 24.39
15	3182482		Knob, Thermostat		Appelez-nous	-
16	3169525		Sleeve, Adaptor		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
17	3187332		Rear Cover		Appelez-nous	-
18	313101		Lens, Amber (2)		Appelez-nous	-
20	3182483		Knob, Selector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
