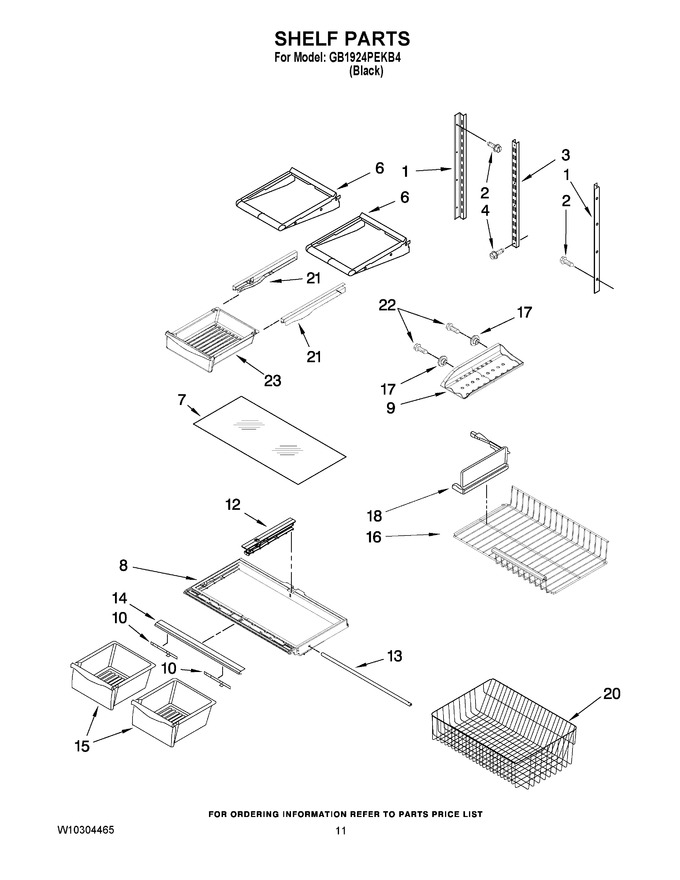

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251970		Ladder, Side				$ 29.89
2	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
3	W10273463		Ladder, Center				$ 29.61
4	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.79
6	W11402522		Shelf, Stationary   (Replaces: 12463608V)				$ 203.51
7	WP67006877		Glass, Crisper   (Replaces: 12204823)			Immediately	$ 209.75
8	WPW10671240		Frame, Crisper   (Replaces: 12530901SP)			Immediately	$ 138.10
9	12646501V		Rack-ice Tray		Appelez-nous	-
10	WP67005864		Slide, Humidity   (Replaces: 12530805SP)			Immediately	$ 8.20
12	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 118.46
13	WP12227302WD		Brace, Crisperframe   (Replaces: 12227302WD)				$ 111.60
14	W10231337		Trim, Crisper				$ 47.70
15	W10833528		Pan, Crisper (2)   (Replaces: 12531305SP)			Immediately	$ 139.95
16	12694606		Shelf, Glide (upper)		Appelez-nous	-
17	10972101		Spacer, Ice Rack				$ 7.82
18	12693802		Divider, Upper Basket		Appelez-nous	-
20	WP12754803		Basket, Freezer (lower)   (Replaces: 12754803)				$ 267.02
21	WP67001053		Glide-right   (Replaces: 12656602SP)			Immediately	$ 9.24
21	WP67001054		Glide-left   (Replaces: 12656601SP)			Immediately	$ 8.82
22	12990601		Screw		Appelez-nous	-
23	WP67001308		Pan, Deli   (Replaces: 12656504SP)			Immediately	$ 138.10
