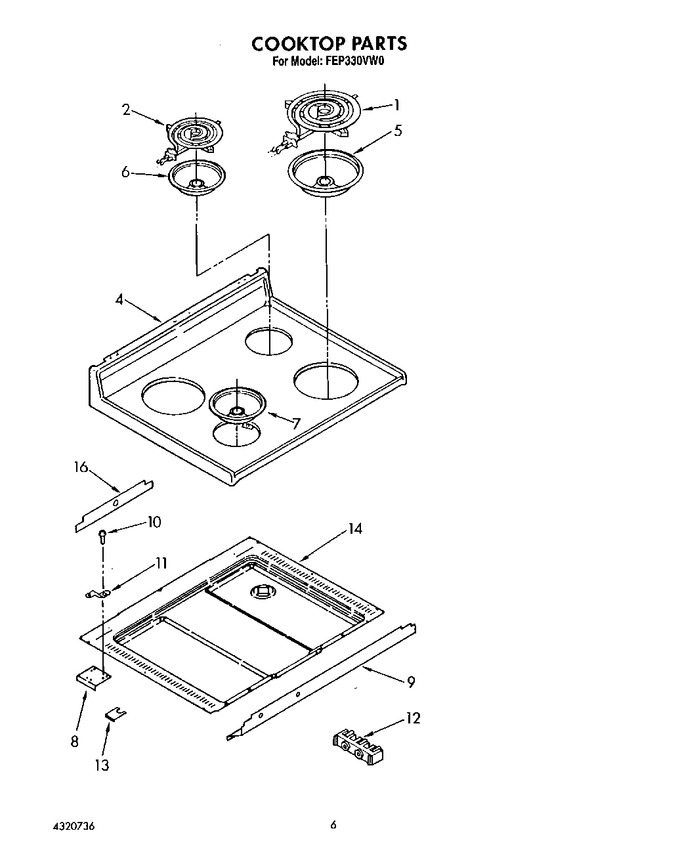

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP660533		Element, Large (2) Rt Front-lt Rear   (Replaces: 4320500)			Immediately	$ 40.21
2	WP660532		Element, Small (2) Lt Front-rt Rear   (Replaces: 4320501)			Immediately	$ 45.10
4	4320678		Cooktop (almond)		Appelez-nous	-
4	4320675		Cooktop (white)		Appelez-nous	-
5	W10196405RW		Bowl Large (2)   (Replaces: 4157960)			Immediately	$ 19.64
6	WPW10196406		Bowl Small (1)   (Replaces: 4157961)			Immediately	$ 12.42
7	WPW10196406		Bowl Small (1)   (Replaces: 4157961)			Immediately	$ 12.42
8	4157115		Element Clamp, Large		Appelez-nous	-
9	4320495		Extension, Burner Box		Appelez-nous	-
10	WP308685		Screw No.10 X 1/2   (Replaces: 4320498)			Immediately	$ 7.08
11	4157010		Rod, Support		Appelez-nous	-
12	WP8203546		Terminal Block   (Replaces: 4157955)			Immediately	$ 27.12
13	4157083		Hinge, Cooktop		Appelez-nous	-
14	4320494		Bottom, Burner Box		Appelez-nous	-
16	4320493		Cover, Switch		Appelez-nous	-
