SELECT A DIAGRAM

02 - Cooktop


03 - Control Panel


04 - Oven


05 - Door And Drawer, Lit/optional


06 - Wiring Harness

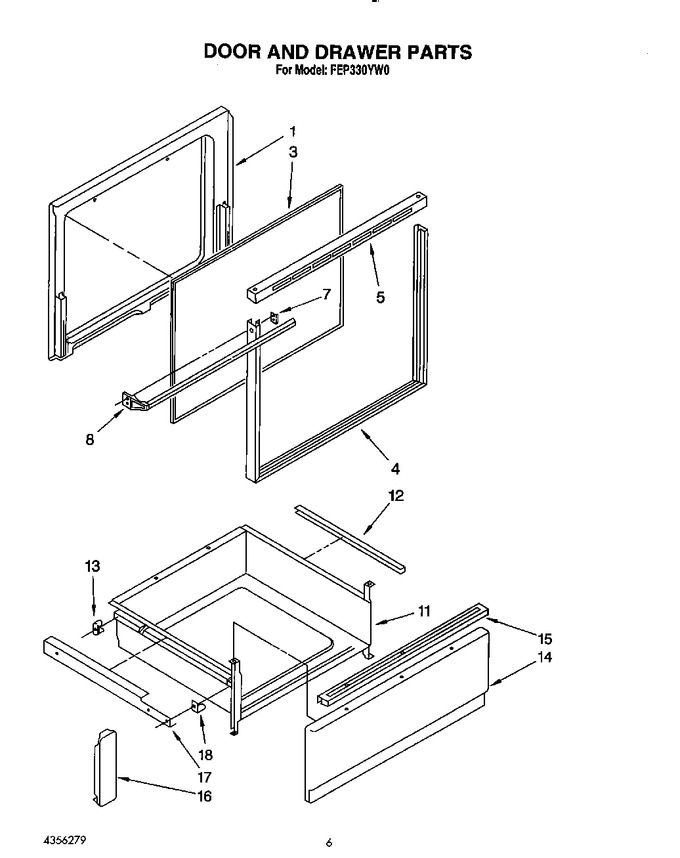

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw (3)		Appelez-nous	-
1	3172221		Liner, Door		Appelez-nous	-
1	3149333		Screw (2)				$ 5.33
3	3148186		Outer Glass Panel (black Glass)		Appelez-nous	-
4	3171530		Frame, Panel		Appelez-nous	-
5	3148223		Top, Door (white-almond)		Appelez-nous	-
7	3148282		Clip, Handle (2)				$ 8.69
8	309133		Screw, 8ab X 7/8		Appelez-nous	-
8	3149242		Handle, Door		Appelez-nous	-
11	327887		Drawer, Utility		Appelez-nous	-
12	309329		Protector, Drawer Slide (2)		Appelez-nous	-
13	307980		Glide, Rear (2)		Appelez-nous	-
13	WP488627		Screw, 8-18 X 1/2 (3)   (Replaces: 313349)				$ 7.57
14	WP488627		Panel, Drawer (screw, 8-18 X 1/2 (2))   (Replaces: 313349)				$ 7.57
14	309923		Panel Drawer (black)		Appelez-nous	-
15	309133		Screw, 8ax5/8		Appelez-nous	-
15	3184530		Handle, Black		Appelez-nous	-
16	307981		Bracket, Rail (2)		Appelez-nous	-
17	WP488627		Rail, Slide (screw (2))   (Replaces: 313349)				$ 7.57
17	3149255		Rail, Slide (r.h.)		Appelez-nous	-
17	3149256		Rail, Slide (l.h. (includes No. 18))		Appelez-nous	-
18	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 83.07
18	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
18	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
18	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
18	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
18	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
18	261582		Grease		Appelez-nous	-
18	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
18	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
18	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
18	3149257		Glide, Front (2)		Appelez-nous	-
18	307748		Screw (2)		Appelez-nous	-
18	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
18	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
18	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
18	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
18	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
18	242829		12 Ga. 150~c (wire, Red 12 Ga. 150~c)		Appelez-nous	-
18	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
18	242831		Wire (14 Ga. 200 C Red)				$ 342.23
18	242826		12 Ga. 150~c (wire, White 14 Ga. 150~c)		Appelez-nous	-
18	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
18	242832		12 Ga. 150~c (wire, Yellow 14 Ga. 200~c)		Appelez-nous	-
18	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
18	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
18	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
18	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
18	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
18	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
18	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
18	261888		New Avocado		Appelez-nous	-
18	261886		Coffee		Appelez-nous	-
18	261890		Harvest Gold		Appelez-nous	-
18	285365		Toast		Appelez-nous	-
18	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
18	285006		Paint, Spray 13 Oz. (black)				$ 57.04
18	350942		Primer (white)   (Replaces: 206922)				$ 89.66
18	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
18	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
18	978883		Almond (uncut)		Appelez-nous	-
18	261891		Harvest Gold (uncut)		Appelez-nous	-
18	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
18	285368		Platinum (uncut)		Appelez-nous	-
	LIT3184578		Wiring Diagram		Appelez-nous	-
	LIT4356279		Repair Parts List		Appelez-nous	-
	LIT3147400		Instructions, Installation		Appelez-nous	-
	LIT3184006		Guide, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
