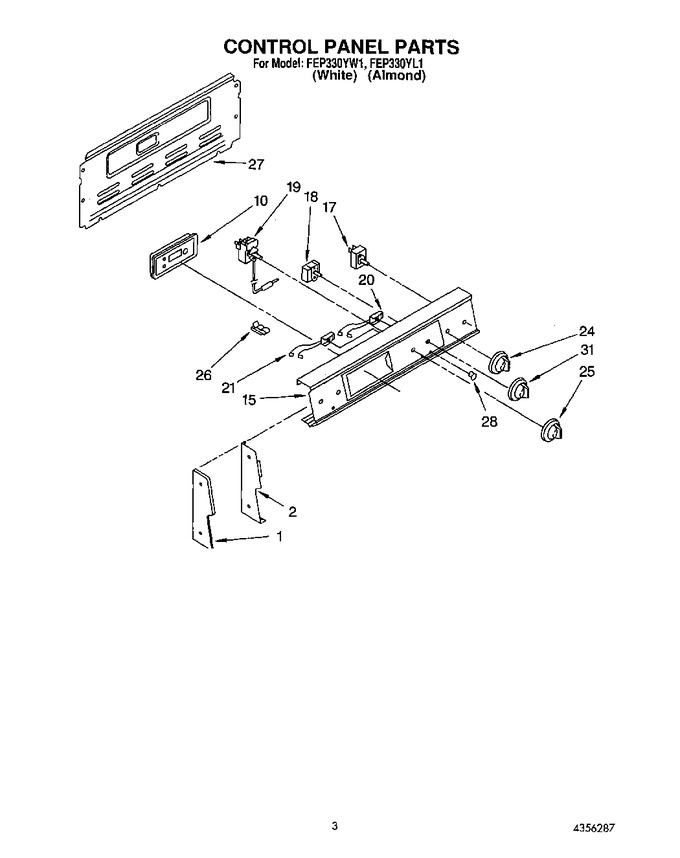

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183466		End Cap R.h.		Appelez-nous	-
1	3183465		End Cap L.h.		Appelez-nous	-
1	3162918		Screw, 8b X 5/8 (4)		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
2	3184354		Shield (r.h.)		Appelez-nous	-
2	3184353		Shield (l.h.)		Appelez-nous	-
10	3184558		Timer, Clock Knobs Included		Appelez-nous	-
10	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
15	3183474		Panel, Control		Appelez-nous	-
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
17	5500-287		Switch, Infinite (8`` Element (2))   (Replaces: 3148953)			Immediately	$ 52.39
17	5500-287		Switch, Infinite (6`` Element (2))   (Replaces: 3148951)			Immediately	$ 52.39
18	3150430		Switch, Selector				$ 66.71
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
19	661150		Thermostat, Oven		Appelez-nous	-
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
20	314031		Light, Indicator (oven On)				$ 62.88
21	3150662		Light, Indicator (surface Unit On)		Appelez-nous	-
24	WP3149983		Knob, Control (4) (infinite Switch)   (Replaces: 3149983)				$ 23.23
25	3149987		Knob, Control (thermostat)				$ 25.12
26	313570		Tube Clip		Appelez-nous	-
27	313195		Rear Cover Control Panel		Appelez-nous	-
27	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
28	313101		Lens, Amber (2)		Appelez-nous	-
31	3149984		Knob, Selector		Appelez-nous	-
