SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts, Optional Parts (not Included)

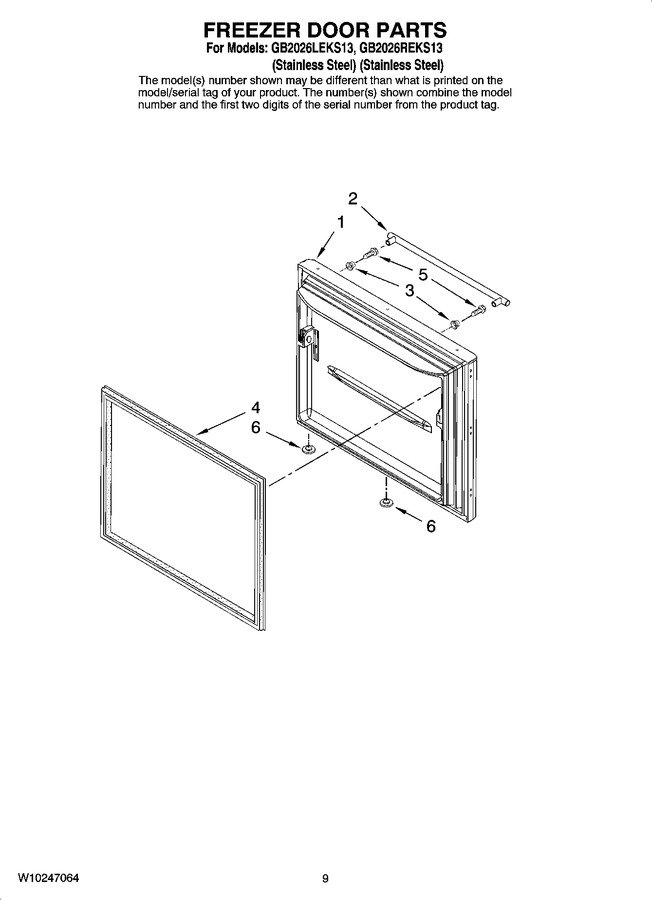

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185588		Freezer Door (w/ Insulation) (stainless)		Appelez-nous	-
2	WP12850909		Handle, Door (stainless Steel)   (Replaces: 12850909)				$ 291.96
3	67006109		Handle, Mount		Appelez-nous	-
4	W10436252		Gasket, Door (black)   (Replaces: W10131754)			Immediately	$ 362.28
5	WPW10133608		Screw, Handle   (Replaces: W10133608)				$ 10.28
6	67004838		Plug, Vent (2) (black)   (Replaces: W10153326)				$ 11.21

    View Diagram in Separate Window       Print Part List
