SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel

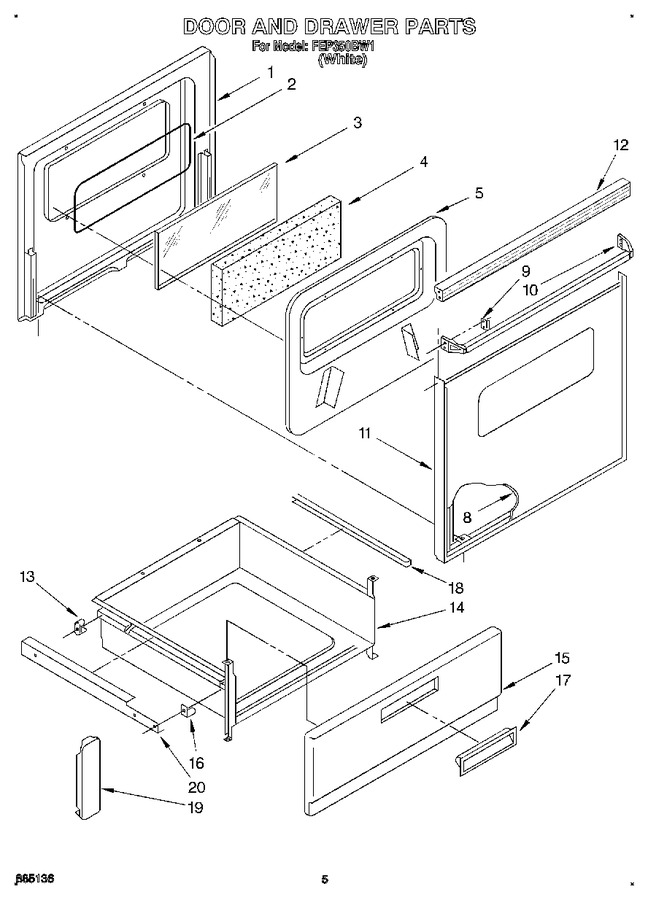

03 - Oven


04 - Door And Drawer


05 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172220		Liner, Door		Appelez-nous	-
2	3148183		Seal, Pyro				$ 7.41
3	3169202		Glass, Clear		Appelez-nous	-
4	3147954		Insulation		Appelez-nous	-
5	3148287		Retainer, Insulation		Appelez-nous	-
5	3185647		Screw (6)		Appelez-nous	-
8	3148185		Glass, Outer		Appelez-nous	-
9	3148282		Clip, Handle (2)				$ 8.69
10	3184128		Handle, Door		Appelez-nous	-
10	WP308499		Pal-nut   (Replaces: 3169090)				$ 7.30
11	307748		Screw (3)		Appelez-nous	-
11	3149253		Screw (4)		Appelez-nous	-
11	3188997		Frame, Door		Appelez-nous	-
12	3169515		Top, Door Vent		Appelez-nous	-
12	307748		Screw		Appelez-nous	-
13	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 3393008)			Immediately	$ 7.87
13	307980		Glide, Rear		Appelez-nous	-
14	327887		Drawer, Utility		Appelez-nous	-
15	3169432		Panel, Drawer (black)		Appelez-nous	-
15	WP488627		Panel Drawer (screw, 8-18 X 1/2)   (Replaces: 313349)				$ 8.11
16	3149257		Glide, Front (2)		Appelez-nous	-
16	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
17	3150615		Handle, Drawer		Appelez-nous	-
17	309029		Screw (2) 8a X 1/2		Appelez-nous	-
18	309329		Protector, Drawer (2)		Appelez-nous	-
19	3169420		Bracket, Rail (2)		Appelez-nous	-
20	3149255		Rail, Slide (r.h.)		Appelez-nous	-
20	307748		Rail, Slide (screw (2))		Appelez-nous	-
20	3149256		Rail, Slide (l.h. (includes No. 20))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
