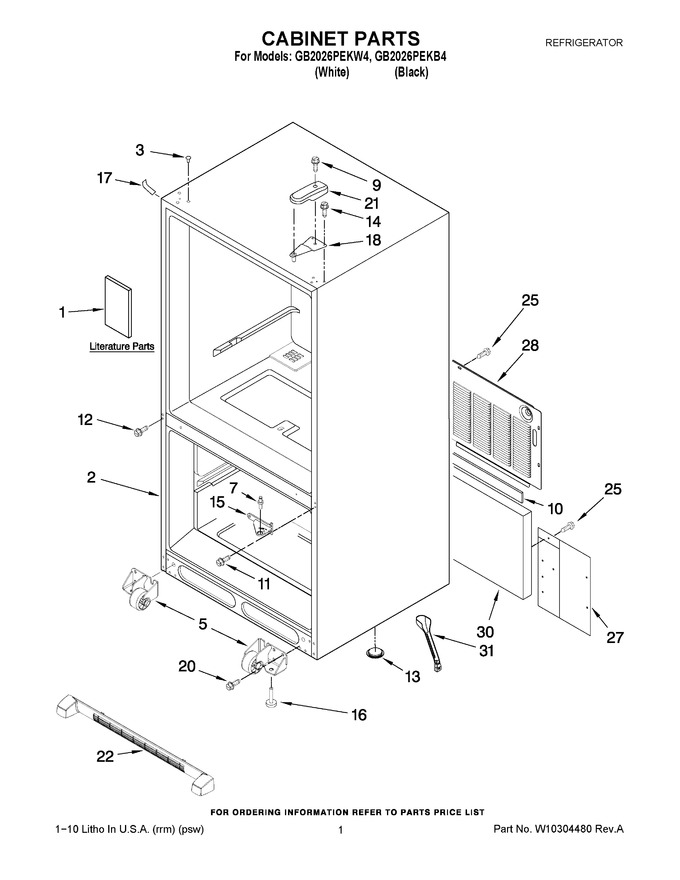

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12828189SP | Owners Manual |
|
- | |||||
| 1 | W10279340 | Tech Sheet |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 7.76 | ||||
| 3 | WP67001130 | Plug, Button (3) White (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 5 | W11820445 | Roller Assembly (right) (Replaces: W10275849) |
|
Immediately | $ 35.57 | ||||
| 5 | W11820444 | Roller Assembly (left) (Replaces: W10275850) |
|
Immediately | $ 35.57 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.93 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 11 | W11573362 | Screw (3) (Replaces: 12992201) |
|
$ 14.02 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 13 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | 12655103ED | Hinge, Center (black) |
|
$ 85.01 | |||||
| 15 | 12655102AP | Hinge, Center (white) (Replaces: 12655102WD) |
|
$ 143.69 | |||||
| 16 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 17 | 12587703W | Cover, Corner White |
|
$ 21.81 | |||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 18 | 12626910ED | Hinge, Top (right Hand) |
|
$ 118.92 | |||||
| 18 | 12626912ED | Hinge, Top (left Hand) |
|
- | |||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | 12629801B | Cover, Hinge (black, Rh) |
|
$ 25.13 | |||||
| 21 | 12629801W | Cover, Hinge (white, Rh) |
|
$ 24.68 | |||||
| 21 | W10217485 | Cover, Hinge (black, Lh) (Replaces: 12629803B) |
|
$ 21.64 | |||||
| 21 | 12629803W | Cover, Hinge (white, Lh) |
|
- | |||||
| 22 | WPW10534154 | Grille Assembly (includes Clips) (white) (Replaces: W10244559) |
|
$ 146.34 | |||||
| 22 | WPW10534153 | Grille Assembly (includes Clips) (black) (Replaces: W10244561) |
|
$ 147.21 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 20.34 | |||||
| 28 | W10212203 | Cover, Unit |
|
- | |||||
| 30 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 31 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 |
