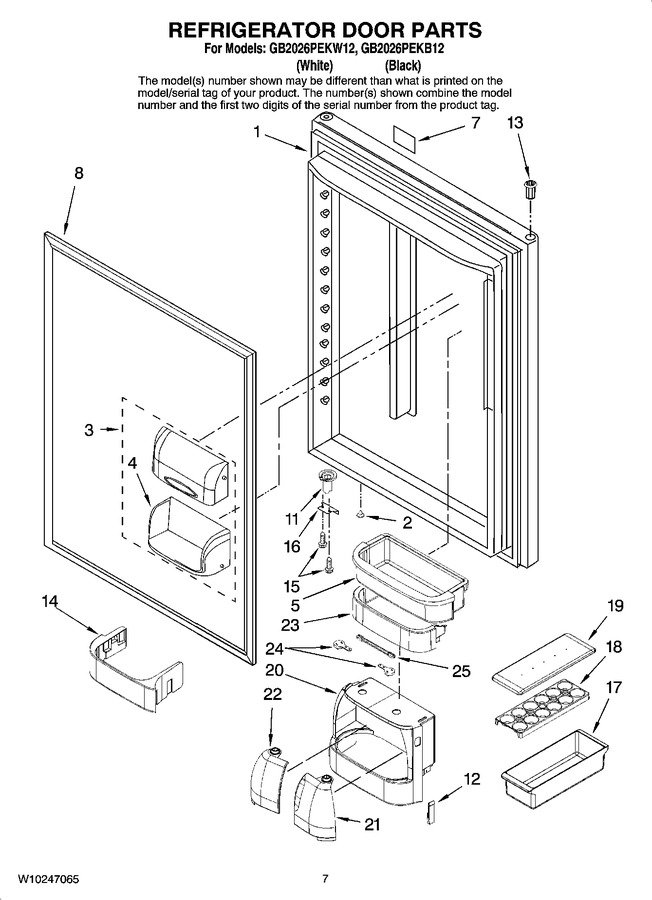

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002621		Refrigerator Door (w/ Insulation) (black)		Appelez-nous	-
1	67002622		Refrigerator Door (w/ Insulation) (white)		Appelez-nous	-
2	67004838		Plug, Vent (black)				$ 11.21
2	10712401		Plug, Vent (white)				$ 7.79
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	67003776		Bucket (2) (large)		Appelez-nous	-
7	66981-5		Nameplate		Appelez-nous	-
8	W10849442		Gasket, Door Magnetic (black)   (Replaces: W10133881)				$ 361.55
8	W10443317		Gasket, Door Magnetic (white)   (Replaces: W10133418)				$ 366.79
11	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 8.15
11	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
12	67004602		Hook, Chiller		Appelez-nous	-
13	67004978		Bushing (black)				$ 22.10
13	WP67004977		Bushing (white)   (Replaces: 67004977)				$ 8.20
14	67004717		Retainer, Chiller				$ 26.59
15	WP98165		Screw   (Replaces: 67006287)				$ 8.57
16	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 69.29
16	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
17	10423131		Bin, Utility				$ 31.13
18	10436404		Lid, Utility				$ 60.85
19	10436506		Tray, Egg				$ 8.28
20	67004720		Frame, Chiller		Appelez-nous	-
21	67004598		Door, Rh Chiller				$ 36.77
22	67004599		Door, Lh Chiller		Appelez-nous	-
23	67004721		Bucket, Chiller		Appelez-nous	-
24	67002293		Linkeage				$ 11.76
25	67004601		Center, Linkeage		Appelez-nous	-
