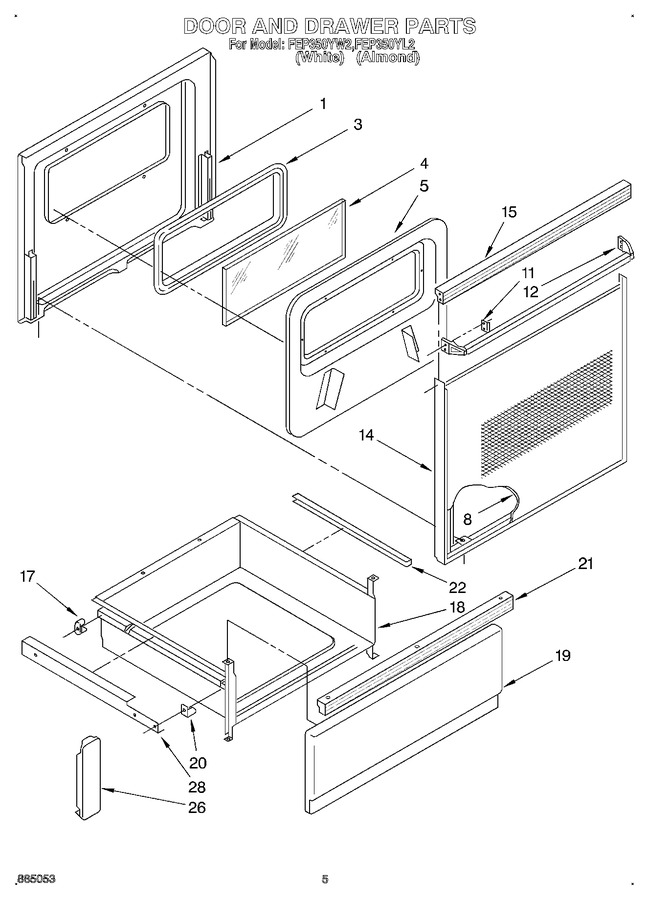

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172220		Liner, Door		Appelez-nous	-
1	3148443		Screw, No.8-18 X 5/16 (6)		Appelez-nous	-
3	3148183		Seal, Glass				$ 7.41
4	3169202		Glass, Inner		Appelez-nous	-
5	3148287		Retainer,		Appelez-nous	-
5	3148443		Screw, 8-18 X 5/16 (6)		Appelez-nous	-
8	3148185		Glass, Outer		Appelez-nous	-
11	3148282		Clip, Handle (2)				$ 8.69
12	309133		Screw, (4) 8a X 5/8		Appelez-nous	-
12	3149242		Handle, Door		Appelez-nous	-
14	3171530		Frame, Door		Appelez-nous	-
14	309133		Screw, (4) 8a X 5/8		Appelez-nous	-
15	3148223		Top, Door		Appelez-nous	-
17	307980		Glide, Rear		Appelez-nous	-
17	WP488627		Screw, 10a X 1/2 (2)   (Replaces: 313349)				$ 8.11
18	327887		Drawer, Utility		Appelez-nous	-
19	309133		Panel Drawer (screw, 8-18 X 1/2)		Appelez-nous	-
19	309923		Panel Drawer (black)		Appelez-nous	-
20	3149257		Glide, Front (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
21	3184530		Handle, Drawer		Appelez-nous	-
21	309029		Screw (2) 8a X 1/2		Appelez-nous	-
22	309329		Protector, Drawer (2)		Appelez-nous	-
26	307981		Bracket, Rail (2)		Appelez-nous	-
28	307748		Rail, Slide (screw (2))		Appelez-nous	-
28	3149256		Rail, Slide (l.h. (includes No. 20))		Appelez-nous	-
28	3149255		Rail, Slide (r.h.)		Appelez-nous	-
