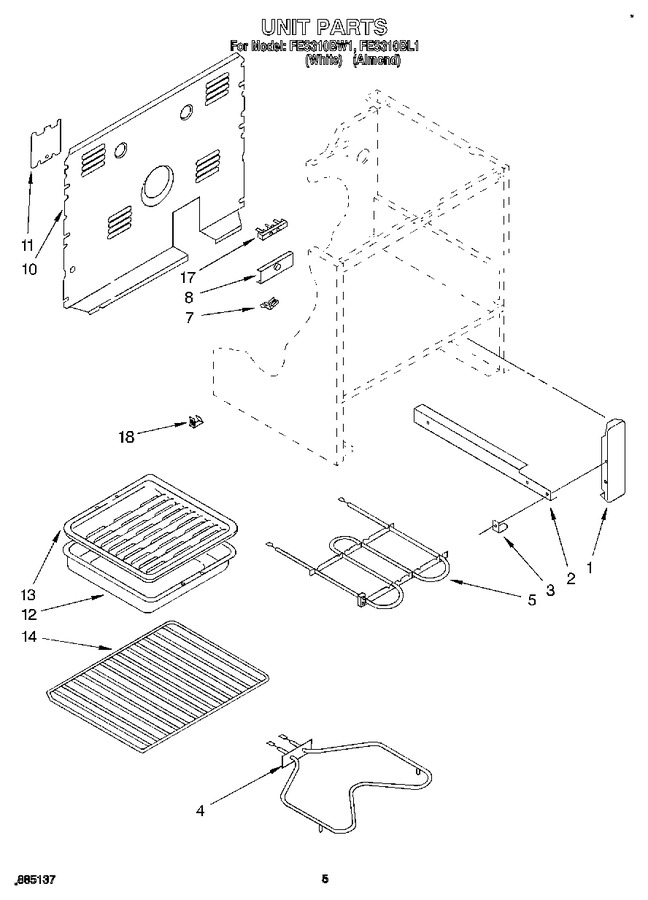

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Unit


05 - Oven


06 - Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3169420		Bracket, Mounting (2)		Appelez-nous	-
2	3149256		Rail, Slide (l.h. (includes Illus. 3))		Appelez-nous	-
2	WP681414		Rail, Slide (screw, 10a X 1/2 (2))   (Replaces: 343641)			Immediately	$ 7.85
2	3149255		Rail, Slide (r.h.)		Appelez-nous	-
3	3149257		Glide, Front (2)		Appelez-nous	-
3	307748		Screw (2)		Appelez-nous	-
4	WP308180		Unit, Bake   (Replaces: 661170)				$ 107.69
4	3150532		Screw No.10-32x7/16		Appelez-nous	-
5	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
5	WP660579		Unit, Broil   (Replaces: 660579)				$ 156.44
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
7	313660		Clip		Appelez-nous	-
7	308498		Ground Strap		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
8	3150190		Bracket, Service		Appelez-nous	-
10	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.85
10	3148975		Cover, Rear		Appelez-nous	-
11	307972		Cover, Service		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
12	4396923		Pan, Broiler   (Replaces: 3169076)			Immediately	$ 57.82
13	4396923		Rack, Broiler   (Replaces: 3147563)			Immediately	$ 57.82
14	308173		Rack, Oven (2)		Appelez-nous	-
17	98884		Screw, (2) 10 X 1		Appelez-nous	-
17	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 30.13
18	8273888A		Anti-tip Kit (floor Mount)   (Replaces: 814091)				$ 31.07
18	98005642		Clip, Therm Bulb   (Replaces: 313382)			Immediately	$ 82.93
18	3169093		Insulation, Wrapper		Appelez-nous	-
18	3169094		Insulation, Oven Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
