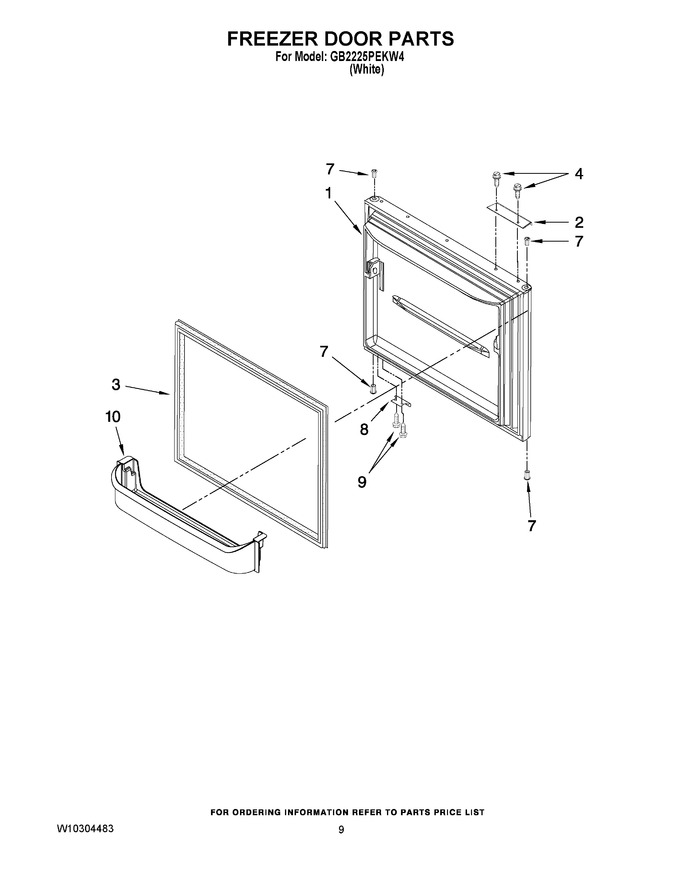

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13024225WQ		Freezer Door (w/ Insulation) (white)		Appelez-nous	-
2	WP67005140		Handle, Door (white)   (Replaces: 12610803WN)			Immediately	$ 148.34
3	W10443315		Gasket, Door (white)   (Replaces: W10164036)				$ 193.98
4	WPW10348409		Screw, Handle   (Replaces: 12990301)			Immediately	$ 7.76
7	WP67004977		Bushing (white)   (Replaces: 10961006W)				$ 7.81
8	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 69.29
9	WP98165		Screw   (Replaces: 12990504)				$ 8.00
10	12737601		Retainer, (door Shelf)		Appelez-nous	-
