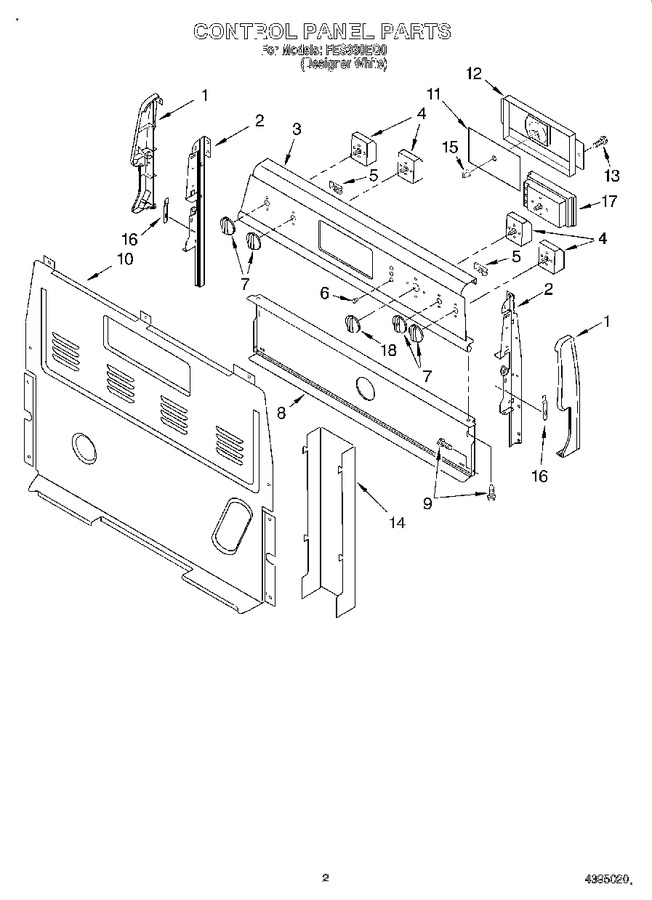

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Chassis


04 - Drawer And Broiler


05 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3195318		Endcap (left Hand)		Appelez-nous	-
1	3195319		Endcap (right Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
3	3195361		Panel, Backguard		Appelez-nous	-
4	5500-287		Switch, Infinite (right Front)   (Replaces: 3148951)			Immediately	$ 52.39
4	3196171		Switch, Infinite (screw (8))		Appelez-nous	-
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148953)			Immediately	$ 52.39
5	3195955		Light, Ind.		Appelez-nous	-
6	WP3196068		Lens, Light (2)   (Replaces: 3196068)			Immediately	$ 6.26
7	3196028		Knob, Infinite (4)				$ 17.73
8	3196083		Shield, Heat		Appelez-nous	-
9	W10276642		Screw (4)   (Replaces: 4449746)				$ 6.41
10	W11233072		Screw (9)   (Replaces: 3196178)			Immediately	$ 14.72
10	WP8272473		Cover, Upper   (Replaces: 3195163)				$ 219.04
11	3148852		Glass, Clock		Appelez-nous	-
12	3169299		Clock, Range		Appelez-nous	-
13	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
14	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
14	WPW10326122		Box, Cover   (Replaces: 3195133)				$ 139.60
15	3169184		Knob, Clock		Appelez-nous	-
16	3196200		Clip, Spring (2)				$ 10.45
17	3195186		Control, Oven		Appelez-nous	-
18	3196034		Knob, Oven Control		Appelez-nous	-
