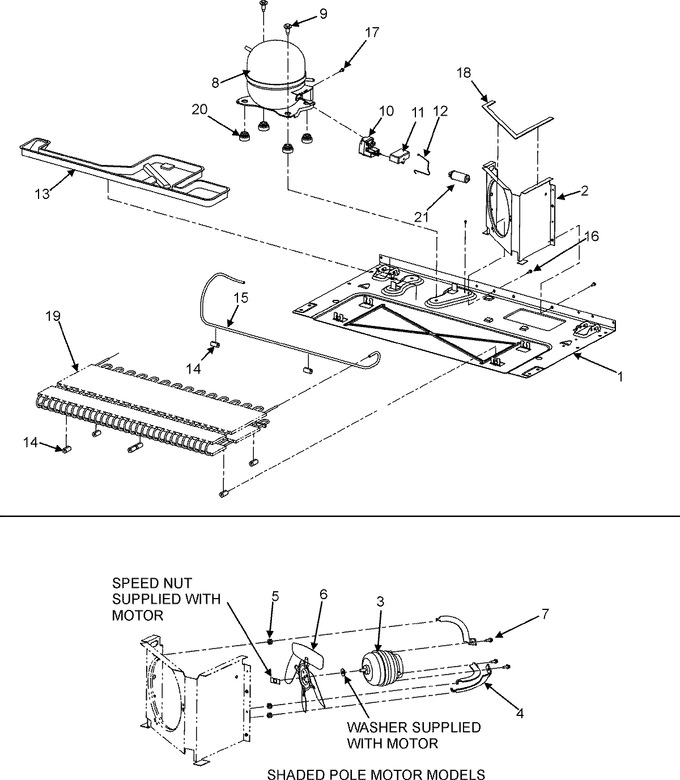

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67005889		Pan, Base	10	Appelez-nous	-
2	67006705		Shroud, Condenser Fan	10	Appelez-nous	-
3	67005104		Motor, Condenser Fan	10	Appelez-nous	-
4	67003354		Bracket, Condenser Motor	10	Appelez-nous	-
5	61004743		Grommet, Bracket	10			$ 5.51
6	WP12587601		Blade, Cond Fan   (Replaces: 12587601)	10			$ 126.67
7	M0223816		Screw, Tr	10			$ 5.27
8	12002817		Compressor Kit	10	Appelez-nous	-
9	12846902		Screw, Shoulder   (Replaces: 67006432)	10			$ 12.99
10	W10848274		Relay/capacitor Assy   (Replaces: 67006453)	10			$ 177.00
11	WP2201147		Capacitor   (Replaces: 67007162)	10			$ 128.97
12	12576801		Strap, Bale	10	Appelez-nous	-
13	WP12579803		Pan, Drain   (Replaces: 67004464)	10			$ 245.45
14	67005680		Grommet, Condenser	10			$ 21.05
15	WP12866903		Tube, Discharge   (Replaces: 67004700)	10		Immediately	$ 133.53
16	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.95
17	12992301		Screw, Tf   (Replaces: M0231604)	10			$ 7.32
18	WP854334		Seal   (Replaces: 61003210)	10			$ 13.28
19	WP67006131		Condenser   (Replaces: 67006131)	10			$ 366.74
20	WPW10169124		Grommet, Compressor   (Replaces: 67003493)	10		Immediately	$ 7.19
21	67005062		Filter, Line	10	Appelez-nous	-
NI	12973201		Harness, Mc	10	Appelez-nous	-
