01 - Cooktop, Literature

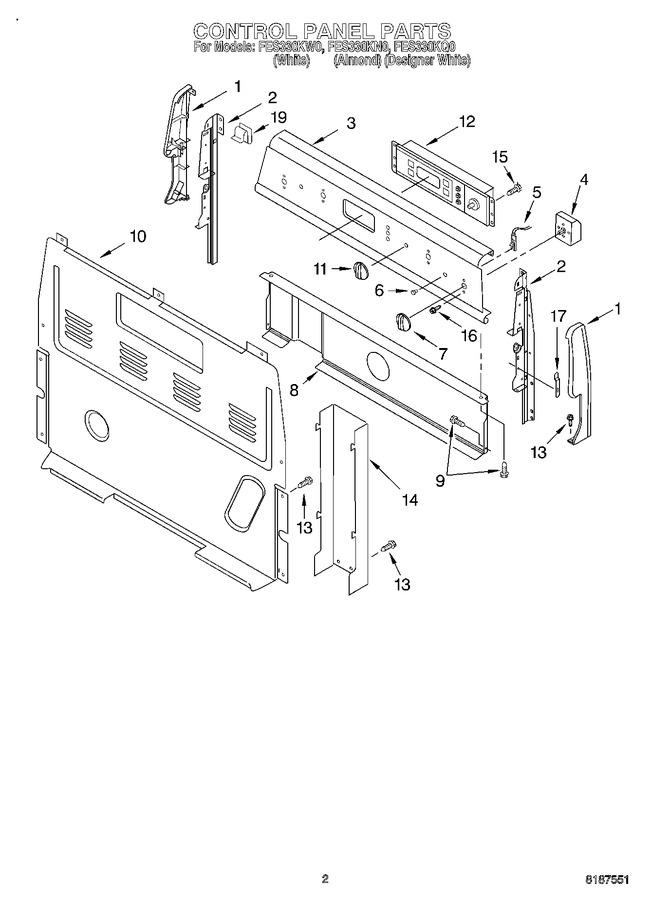

02 - Control Panel


03 - Chassis


04 - Drawer And Broiler


05 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3195316		Endcap (left Hand-black)		Appelez-nous	-
1	3195317		Endcap (right Hand-black)		Appelez-nous	-
1	3195318		Endcap (left Hand-white)		Appelez-nous	-
1	3195319		Endcap (right Hand-white)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	8522379		Panel, Backguard (white)		Appelez-nous	-
3	8522380		Panel, Backguard (black)		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 52.39
5	8273303		Indicator, Surface		Appelez-nous	-
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
7	WP3196027		Knob, Infinite (4) (black)   (Replaces: 3196027)				$ 20.42
7	3196028		Knob, Infinite (4) (white)				$ 17.73
8	8053912		Shield, Heat				$ 34.55
9	W10276642		Screw   (Replaces: 4449746)				$ 6.41
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 219.04
11	8053354		Knob-150 Control (black)		Appelez-nous	-
11	8053355		Knob-150 Control (white)		Appelez-nous	-
12	3196968		Control-range (white)		Appelez-nous	-
12	3196967		Control, Range (black)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WPW10326122		Box, Cover   (Replaces: 3195133)				$ 139.60
15	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
17	3196200		Clip, Spring (2)				$ 10.45
19	WP8273564		Clip   (Replaces: 8273564)				$ 12.66

    View Diagram in Separate Window       Print Part List
