Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107517SQ Refrigerator Door (w/ Insulation) (left-stainless) Appelez-nous -
1 13107515SQ Refrigerator Door (w/ Insulation) (right-stainless) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 12801903 Bucket, Lrg (2) Appelez-nous -
5 67004040 Bucket, Med (2)   (Replaces: 12801902) Special Order $ 95.99

6 61002504 Nameplate Appelez-nous -
8 W10164039 Gasket, Door Magnetic (black) Special Order $ 343.59

9 12850919 Handle, Door (stainless) Special Order $ 37.02

10 WPW10133608 Screw, Handle   (Replaces: 12991202) Special Order $ 10.28

11 12945201 Mount, Handle Special Order $ 35.20

12 67004978 Bushing (black)   (Replaces: 10961006B) Special Order $ 22.10

13 12690503 Retainer, Door Special Order $ 48.08

14 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

15 10423131SP Bin, Utility Appelez-nous -
16 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.75

17 10436506S Tray, Egg Appelez-nous -
18 10436404S Lid-utility Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

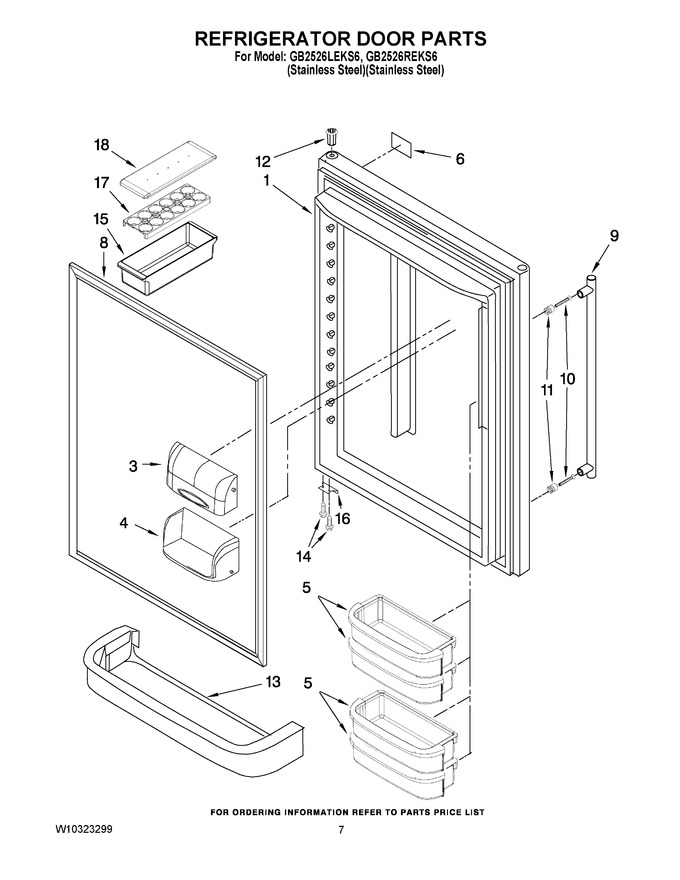

Diagram for GB2526REKS6
