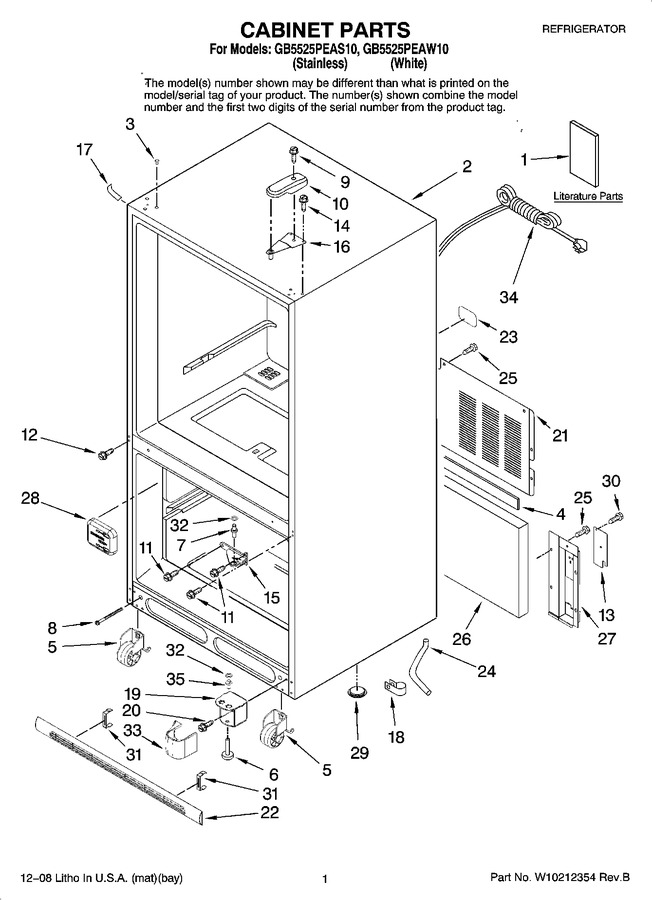

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12828189		Use & Care Guide		Appelez-nous	-
1	12827958		Tech Sheet		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: M0310731)			Immediately	$ 7.76
3	WP67001130		Plug, Button (3) White   (Replaces: M0310729)			Immediately	$ 5.98
4	B5759649		Gasket		Appelez-nous	-
5	67006118		Roller Assy. (2)		Appelez-nous	-
6	W11177593		Foot Brake   (Replaces: 67003868)				$ 11.60
7	WP67006744		Pin, Center Hinge   (Replaces: 67006744)				$ 8.27
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 67006611)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	67001012		Cover Hinge (black)				$ 47.34
10	67001014		Cover Hinge (white)				$ 21.28
11	W11573362		Screw   (Replaces: 67006380)				$ 14.02
12	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 7.88
13	12479902		Plate, Cover		Appelez-nous	-
14	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 7.88
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 152.73
15	W11689473		Hinge, Center (white)   (Replaces: 67006960)				$ 66.47
16	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 44.89
17	67003484		Cover, Corner (white)				$ 20.40
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
18	W10157973		Clip, Drain				$ 7.80
19	W10215662		Hinge, Bottom (black)				$ 34.73
19	67001069		Hinge, Bottom (white)		Appelez-nous	-
20	67006564		Screw (4)			Immediately	$ 7.69
21	12575101WD		Cover, Unit				$ 73.26
22	67003849		Grille, Toe (white)				$ 51.91
22	67003843		Grille, Toe (black)				$ 51.18
23	W11685757		Label, Fill Tube   (Replaces: 67005064)				$ 7.06
24	W10164397		Tube, Drain				$ 14.79
25	67006425		Screw			Immediately	$ 6.95
26	67003796		Fiber, Acoustic				$ 19.27
27	W10132512		Cover, Water Valve		Appelez-nous	-
28	WP67001098		Cover, Fill Tube   (Replaces: 67001098)				$ 8.03
29	A3076901		Plug-button				$ 5.70
30	WP489128		Screw   (Replaces: 67006662)				$ 10.88
31	12627302		Clip, Grille				$ 5.84
32	WPM0274057		Shim, Hinge (white)   (Replaces: M0274057)			Immediately	$ 8.00
32	WPM0274062		Shim, Hinge (black)   (Replaces: M0274062)			Immediately	$ 24.43
33	12561901W		Cover, Lw Hinge (white)				$ 6.37
33	12561901B		Cover, Lw Hinge (black)				$ 11.62
34	W10462018		Cord, Power   (Replaces: 13015202)		Appelez-nous	-
35	67007018		Pin, Bottom Hinge			Immediately	$ 8.21
