SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Unit


05 - Oven


06 - Harness, Lit/optional

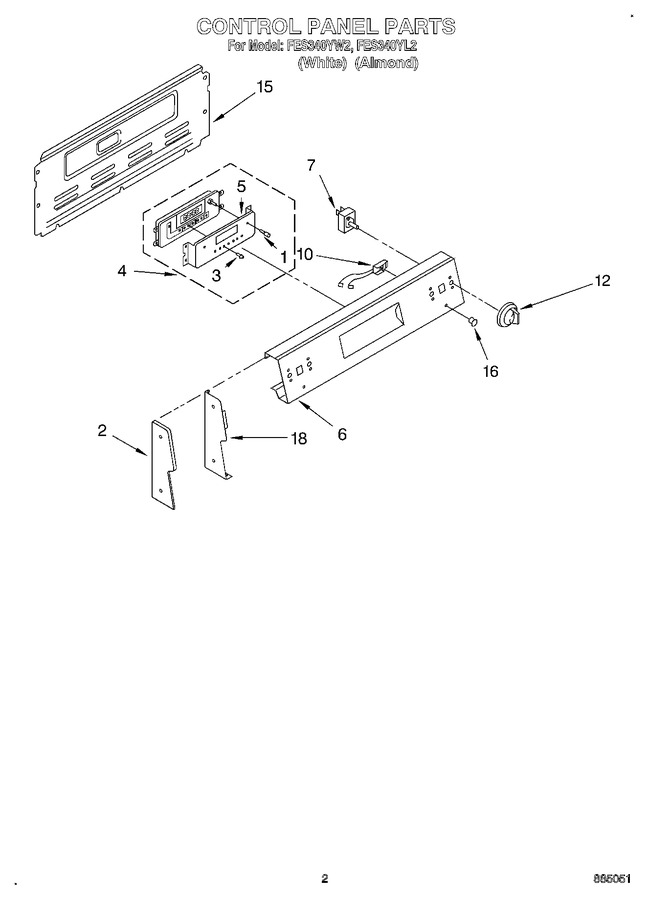

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3149784		Knob		Appelez-nous	-
2	3183466		End Cap R.h.		Appelez-nous	-
2	3183465		End Cap L.h.		Appelez-nous	-
2	3162918		Screw, 8a X 5/8 (4)		Appelez-nous	-
3	3149780		Knob, Bottomset		Appelez-nous	-
4	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
4	3184300		Control, Oven Assembly		Appelez-nous	-
4	3181004		Nut		Appelez-nous	-
5	3180746		Glass, Control		Appelez-nous	-
6	3183592		Panel, Control		Appelez-nous	-
6	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
7	5500-287		Switch, Infinite (6`` (2) Lf, Rr)   (Replaces: 3148951)			Immediately	$ 52.39
7	308119		Switch, Infinite (screw, 8-32 X 3/16 (8))		Appelez-nous	-
7	5500-287		Switch, Infinite (8`` (2) Lr, Rf)   (Replaces: 3148953)			Immediately	$ 52.39
10	313102		Light, Indicator (includes No.16)				$ 66.48
12	WP3149983		Knob, Control (4)   (Replaces: 3149983)				$ 23.23
15	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
15	3187332		Rear Cover Control Panel		Appelez-nous	-
16	313101		Lens, Amber (2)		Appelez-nous	-
18	WP965173		Shield (screw, 8a X 3/8 (2))   (Replaces: 246132)			Immediately	$ 10.72
18	3184354		Shield (r.h.)		Appelez-nous	-
18	3184353		Shield (l.h.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
