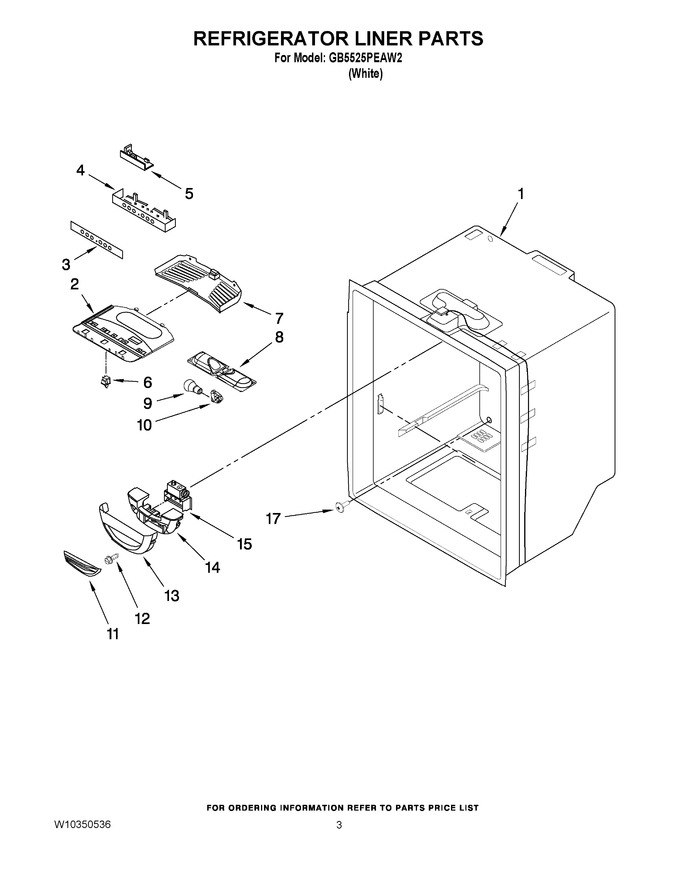

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	12806301		Bracket, Control And Lights		Appelez-nous	-
3	12816515		Overlay				$ 53.92
4	WPW10464769		Housing, Electronic Control   (Replaces: 12806406)			Immediately	$ 113.76
5	WPW10708492		Board, Control   (Replaces: 12784417V)				$ 265.67
6	W11384469		Switch, Light   (Replaces: C3680314)			Immediately	$ 39.09
7	W11284721		Cover, Light   (Replaces: 12806501)				$ 106.02
8	12806601		Housing, Light   (Replaces: 12806601V)				$ 110.20
9	WP67002552		Bulb, Light (2)   (Replaces: A0282808V)			Immediately	$ 12.34
10	W11447232		Socket, Light (2)   (Replaces: W10134764V)			Immediately	$ 13.87
11	67003900		Insert, Damper Cover   (Replaces: 12806801)			Immediately	$ 8.55
12	W11772394		Screw (2)   (Replaces: 12990604)			Immediately	$ 13.22
13	WP12806701		Cover, Damper   (Replaces: 12806701)				$ 118.65
14	W11750607		Insulation   (Replaces: 13012402)				$ 50.15
15	W10177399		Control, Damper		Appelez-nous	-
17	M0310343		Plug Button				$ 11.20
NI	12973503		Harness, Controls (refrigerator) (includes No. 16)		Appelez-nous	-
