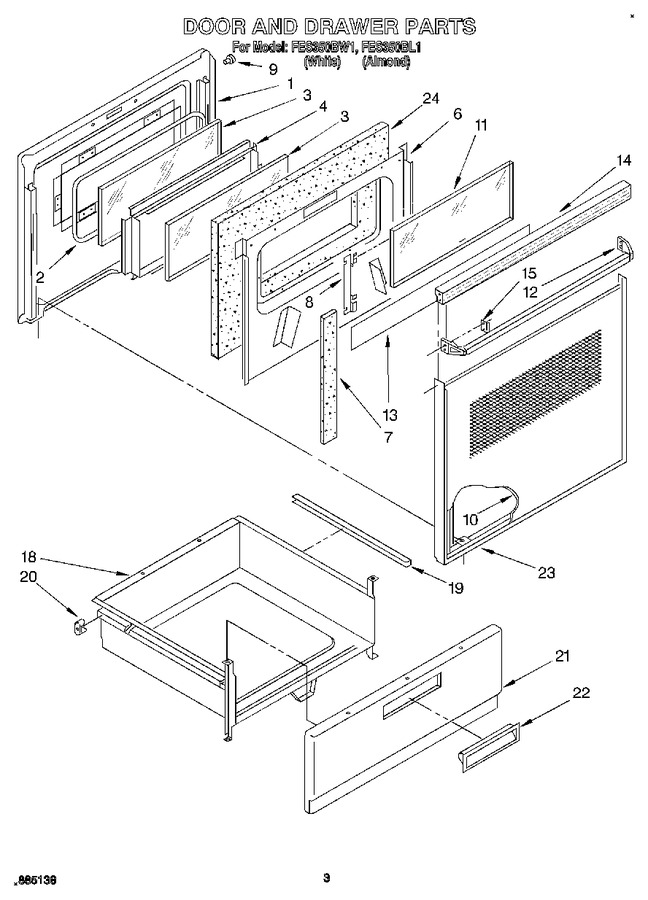

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Door		Appelez-nous	-
2	3148183		Seal, Pyro				$ 7.41
3	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 150.79
4	3148234		Frame, Glass		Appelez-nous	-
4	3185647		Screw, 8 X 3/8 (6)		Appelez-nous	-
6	3185647		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	3148441		Seal, Foam		Appelez-nous	-
8	3148187		Retainer, Glass		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148185		Glass, Panel		Appelez-nous	-
11	3169202		Glass, Clear		Appelez-nous	-
12	3184128		Handle, Door		Appelez-nous	-
12	3149253		Screw (4)		Appelez-nous	-
13	3169191		Foil, Door		Appelez-nous	-
14	307748		Screw (2)		Appelez-nous	-
14	3169515		Top, Door Vent		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 3393008)			Immediately	$ 7.87
20	307980		Glide, Rear (2)		Appelez-nous	-
21	3169432		Panel, Drawer (black)		Appelez-nous	-
21	WP488627		Panel, Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 313349)				$ 7.57
22	309029		Screw (2) 8ax5/8		Appelez-nous	-
22	3150615		Handle, Drawer		Appelez-nous	-
23	3149253		Screw (4)		Appelez-nous	-
23	3188997		Frame, Door		Appelez-nous	-
23	307748		Screw (3)		Appelez-nous	-
24	3147951		Insulation		Appelez-nous	-
