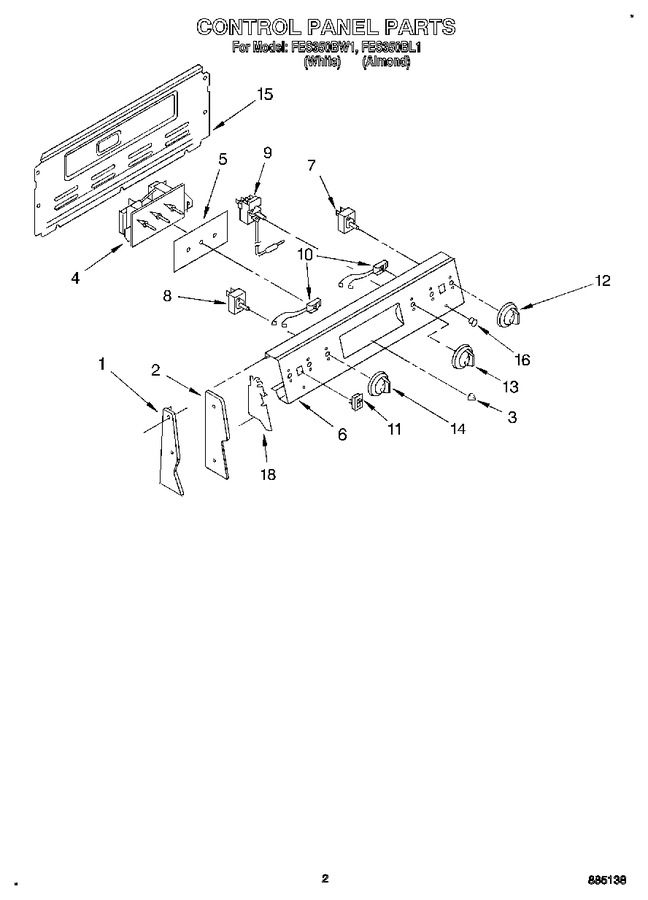

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187671		End Trim (left)		Appelez-nous	-
1	3169366		End Trim (screw, 8 X 5/8 (2))		Appelez-nous	-
1	3187672		End Trim (right)		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3150441		End Cap R.h.		Appelez-nous	-
2	3150442		End Cap L.h.		Appelez-nous	-
3	3169182		Knob, Timer (3)		Appelez-nous	-
4	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
4	661458		Timer - Auto		Appelez-nous	-
5	313513		Glass, Timer		Appelez-nous	-
6	3169533		Panel, Control		Appelez-nous	-
6	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
7	WP3149400		Switch, Infinite (8`` (2) Lr-rf)   (Replaces: 3148954)			Immediately	$ 90.51
7	308119		Switch, Infinite (screw, (8) 8-32 X 1/4)		Appelez-nous	-
7	5500-287		Switch, Infinite (6`` (2) Lf, Rr)   (Replaces: 3148951)			Immediately	$ 52.39
8	WP965173		Screw, (2) 8 X 1/4   (Replaces: 3150344)			Immediately	$ 10.72
8	3169310		Switch, Selector		Appelez-nous	-
9	3169526		Thermostat, Oven		Appelez-nous	-
9	WP313808		Screw, (2) 6 X 1/4   (Replaces: 311932)				$ 7.60
10	314031		Light, Indicator (250v)				$ 62.88
10	3150662		Light, Indicator (125v) (includes No.16)		Appelez-nous	-
11	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 89.48
12	WP3149983		Knob, Control (4)   (Replaces: 3149983)				$ 23.23
13	3149988		Knob, Thermostat		Appelez-nous	-
14	3149986		Knob, Selector				$ 23.95
15	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
15	3187332		Rear Cover Control Panel		Appelez-nous	-
16	313101		Lens, Amber (2)		Appelez-nous	-
18	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
18	313608		Shield, R Or L		Appelez-nous	-
