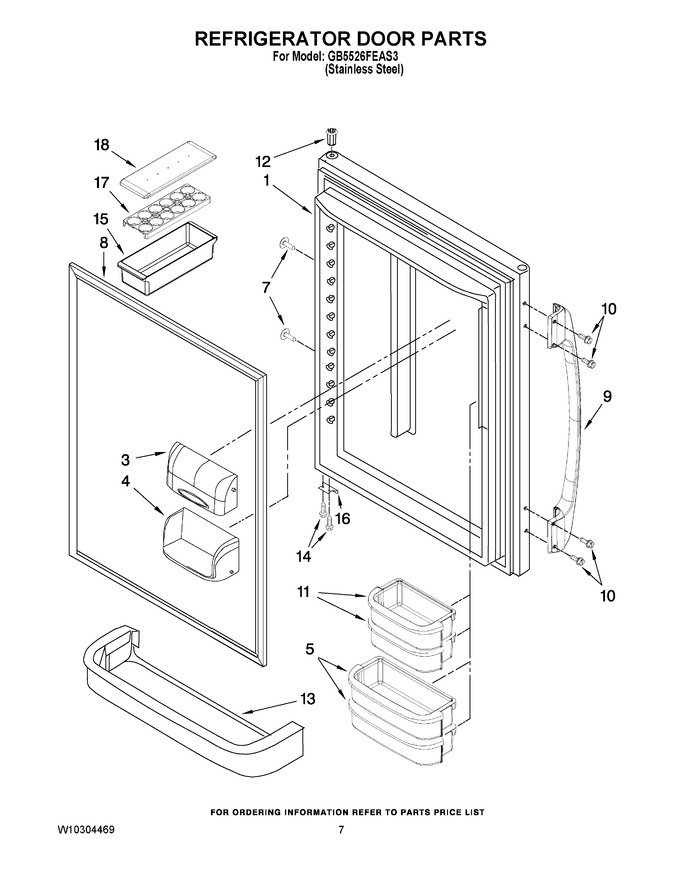

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13023899SQ | Refrigerator Door (w/ Insulation) (stainless) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | 67004040 | Bucket (2) (medium) (Replaces: 12801902V) |
|
$ 95.99 | |||||
| 7 | 12991101 | Screw, Handle (black) |
|
$ 13.47 | |||||
| 8 | WPW10436245 | Gasket, Door Magnetic (black) (Replaces: W10164031) |
|
$ 362.36 | |||||
| 9 | 12846204S | Handle, Door (stainless) |
|
$ 413.23 | |||||
| 10 | 12992801 | Screw |
|
$ 5.81 | |||||
| 11 | WP67004041 | Door Bucket (2) (small) (Replaces: 12801901V) |
|
$ 89.01 | |||||
| 12 | 67004978 | Bushing (black) (Replaces: 10961006B) |
|
$ 22.10 | |||||
| 13 | 12690501 | Retainer, Door |
|
$ 41.75 | |||||
| 14 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 15 | 10423131SP | Bin, Utility |
|
- | |||||
| 16 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 17 | 10436506S | Tray, Egg |
|
- | |||||
| 18 | 10436404S | Lid-utility |
|
- |
