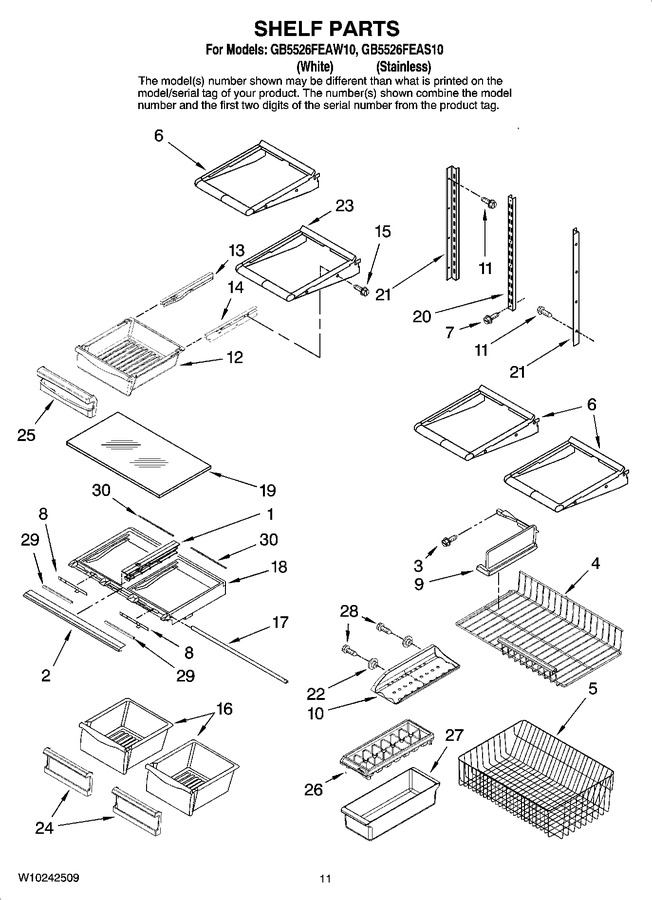

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 67001057) |
|
Immediately | $ 112.82 | ||||
| 2 | 67003884 | Trim, Crisper |
|
- | |||||
| 3 | 67006608 | Screw |
|
- | |||||
| 4 | 67006231 | Shelf, Fz Glide |
|
$ 50.21 | |||||
| 5 | WP12754803 | Basket, Freezer (lower) (Replaces: W10143565) |
|
$ 254.30 | |||||
| 6 | 67003707 | Shelf, Stat (3) |
|
- | |||||
| 7 | W10709795 | Screw (Replaces: 67006360) |
|
$ 13.13 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 7.81 | ||||
| 9 | 67004127 | Divider, Basket (upper) |
|
$ 10.10 | |||||
| 10 | 12646501 | Rack, Ice Tray |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 6.95 | ||||
| 12 | WP67001308 | Pan, Deli (Replaces: 67001308) |
|
Immediately | $ 138.10 | ||||
| 13 | WP67001054 | Glide, Left (Replaces: 67001054) |
|
Immediately | $ 8.40 | ||||
| 14 | WP67001053 | Glide, Right (Replaces: 67001053) |
|
Immediately | $ 9.24 | ||||
| 15 | W11233072 | Screw, Glide (4) (Replaces: 67006626) |
|
Immediately | $ 14.02 | ||||
| 16 | W10833528 | Pan, Crisper (Replaces: 67002569) |
|
Immediately | $ 139.95 | ||||
| 17 | WP12227302WD | Brace, Crisper (Replaces: 67001155) |
|
$ 106.29 | |||||
| 18 | WPW10671240 | Frame, Crisper (Replaces: 67001153) |
|
Immediately | $ 138.10 | ||||
| 19 | WP67006877 | Glass, Crisper Cover (Replaces: 67006877) |
|
Immediately | $ 209.75 | ||||
| 20 | 67001073 | Ladder, Center |
|
$ 54.18 | |||||
| 21 | 67001302 | Ladder, Side |
|
- | |||||
| 22 | 10972101 | Spacer, Ice Rack |
|
$ 7.82 | |||||
| 23 | 67003707 | Shelf, Deli |
|
- | |||||
| 24 | W10833529 | Front, Crisper Pan (Replaces: 67005904) |
|
$ 72.14 | |||||
| 25 | W10202712 | Front, Deli Pan |
|
- | |||||
| 26 | WP841180A | Tray, Ice (Replaces: D7725402S) |
|
Immediately | $ 45.56 | ||||
| 27 | 10423131 | Bin, Utility |
|
$ 31.13 | |||||
| 28 | WP67006908 | Screw, Spacer (Replaces: 67006908) |
|
Immediately | $ 7.95 | ||||
| 29 | 67001158 | Seal, Frnt Crisper |
|
$ 6.93 | |||||
| 30 | 67002274 | Seal, Rear Crisper |
|
$ 8.61 |
