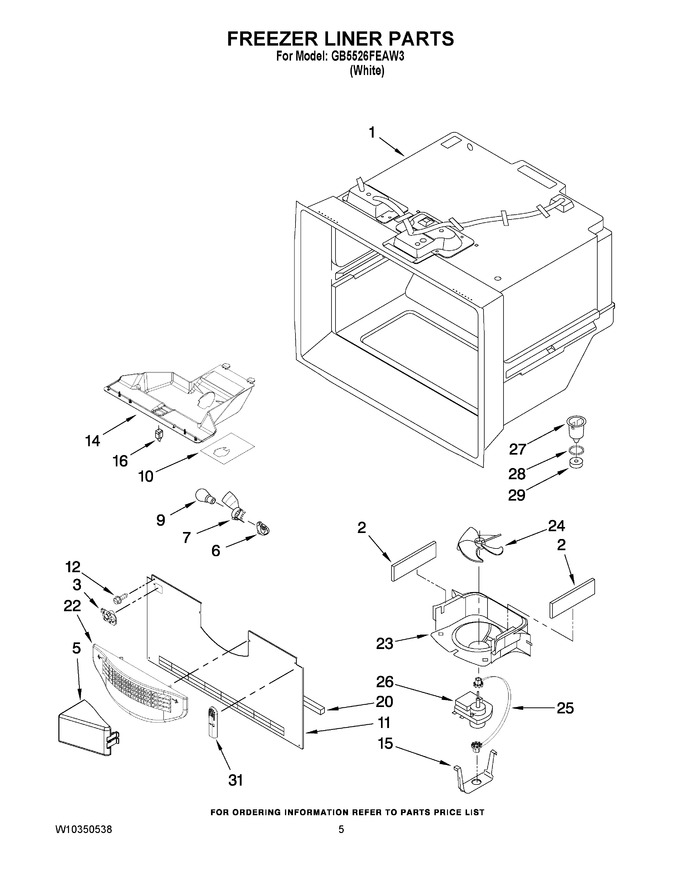

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Asevice Able Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (2) (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | W11448709 | Guide, Fill Tube (Replaces: 12932103) |
|
$ 24.64 | |||||
| 5 | W10157765 | Diverter, Air |
|
$ 88.43 | |||||
| 6 | W11447232 | Socket, Light (Replaces: W10134764V) |
|
Immediately | $ 13.21 | ||||
| 7 | W10119914 | Shroud-lght.socket |
|
- | |||||
| 9 | WP67002552 | Bulb, Light (Replaces: A0282808V) |
|
Immediately | $ 11.75 | ||||
| 10 | W11469652 | Foil-fz Light (Replaces: W10277466) |
|
$ 22.18 | |||||
| 11 | 12226115 | Cover, Evaporator |
|
- | |||||
| 12 | WP489349 | Screw (7) (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 14 | WPW10277025 | Module-fz Light (Replaces: W10277025) |
|
$ 128.00 | |||||
| 15 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466114) |
|
Immediately | $ 37.30 | ||||
| 20 | 12739111 | Gasket, Bottom |
|
$ 77.76 | |||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap Fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Fan, Evaporator (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet (2) |
|
$ 48.38 | |||||
| 26 | WP67005023 | Motor, Evaporator (Replaces: 10449516) |
|
$ 312.36 | |||||
| 27 | W10815413 | Funnel, Drain (incl. No. 28 & 29) (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 |
