SELECT A DIAGRAM

02 - Cooktop


03 - Control Panel


04 - Door And Drawer


05 - Unit, Lit/optional


06 - Oven


07 - Wiring Harness

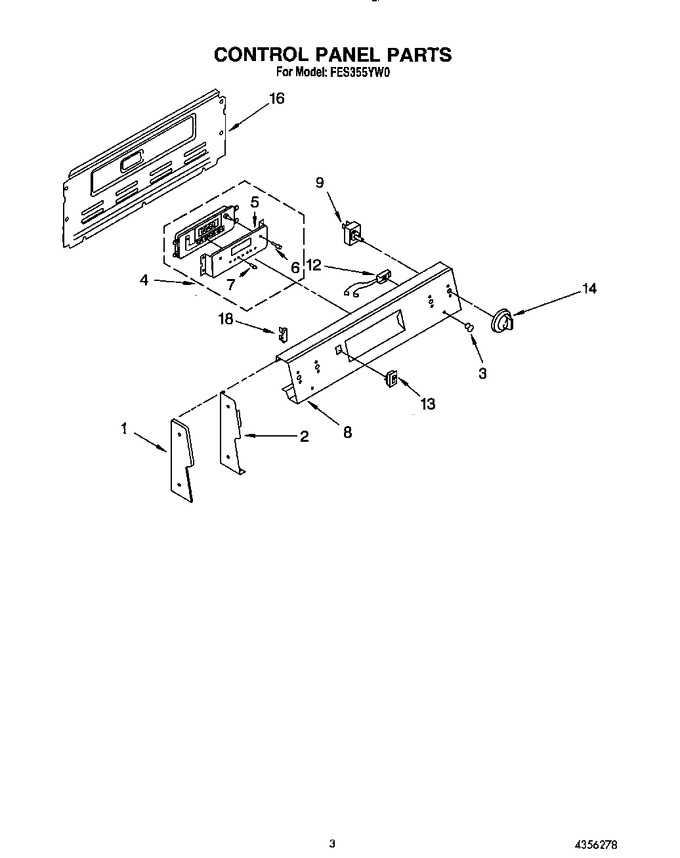

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183466		End Cap R.h.		Appelez-nous	-
1	309133		Screw, 8a X 5/8 (4)		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
1	3183465		End Cap L.h.		Appelez-nous	-
2	3184354		Shield (r.h.)		Appelez-nous	-
2	254225		Screw (4) Support Erc		Appelez-nous	-
2	3184353		Shield (l.h.)		Appelez-nous	-
3	313101		Lens, Light (2)		Appelez-nous	-
4	3184300		Electronic Control (assembly)		Appelez-nous	-
4	WP965173		Electronic Control (screw (2))   (Replaces: 246132)			Immediately	$ 10.72
4	3181004		Electronic Control (nut)		Appelez-nous	-
5	3180746		Lens, Clock		Appelez-nous	-
6	3149784		Knob		Appelez-nous	-
7	3149780		Set, Button		Appelez-nous	-
8	3183591		Control Panel (white/almond)		Appelez-nous	-
9	WP965173		Switch, Infinite (screw)   (Replaces: 246132)			Immediately	$ 10.72
9	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
9	WP3149400		Switch, Infinite (8`` Unit (2))   (Replaces: 3148954)			Immediately	$ 90.51
9	5500-287		Switch, Infinite (6`` Unit (2))   (Replaces: 3148951)			Immediately	$ 52.39
12	313102		Indicator Light (2)				$ 66.48
13	WP4314961		Switch, Rocker (white/almond)   (Replaces: 3148564)				$ 89.48
14	WP681414		Knob, (4) Infinite Switch (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 7.85
14	WP3149983		Knob, (4) Infinite Switch (black)   (Replaces: 3149983)				$ 23.23
16	WP681414		Screw, 10-16 X 1/2 (12)   (Replaces: 343641)			Immediately	$ 7.85
16	313195		Rear Cover Control Panel		Appelez-nous	-
18	WP3196548		Fuse, Thermal   (Replaces: 313214)			Immediately	$ 47.71

    View Diagram in Separate Window       Print Part List
