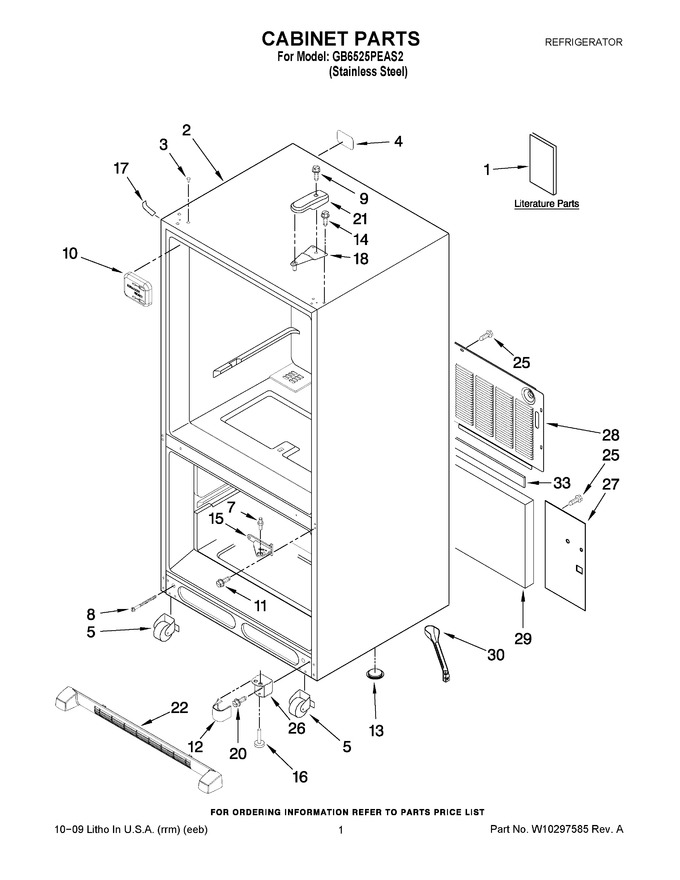

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12828189SP		Owners Manual		Appelez-nous	-
1	W10239599		Tech Sheet		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: M0310731)			Immediately	$ 8.15
4	W11685757		Label, Fill Tube   (Replaces: 12249902)				$ 7.41
5	12580304		Roller Assembly				$ 5.84
7	WP67006744		Pin, Center Hinge   (Replaces: 10351005)				$ 8.68
8	71003131		Bolt, Adjusting (rear)   (Replaces: 12606103)			Immediately	$ 7.08
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	WP67001098		Cover-fill Tube   (Replaces: 12477501)				$ 8.43
11	W11573362		Screw   (Replaces: 12992201)				$ 14.72
12	12561901B		Cover, Hinge (black)				$ 11.62
13	A3076901		Plug-button				$ 5.70
14	WP489349		Screw (3)   (Replaces: 12992403)			Immediately	$ 8.43
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 167.35
16	10354002		Foot Brake (2)			Immediately	$ 7.38
17	67003485		Cover, Corner (black )   (Replaces: 12587703B)			Immediately	$ 22.14
18	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 47.13
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 8.15
21	67001012		Cover, Hinge (black)   (Replaces: 12477601B)				$ 49.71
22	12734401B		Grille Assembly (includes Clips) (black)		Appelez-nous	-
25	67006425		Screw (9)   (Replaces: 12990511)			Immediately	$ 7.30
26	12465005ED		Hinge, Bottom (black)				$ 72.99
27	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 21.36
28	W10212535		Cover, Unit		Appelez-nous	-
29	12820505		Insulation, Sound				$ 71.70
30	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
33	B5759655		Gasket				$ 13.03
