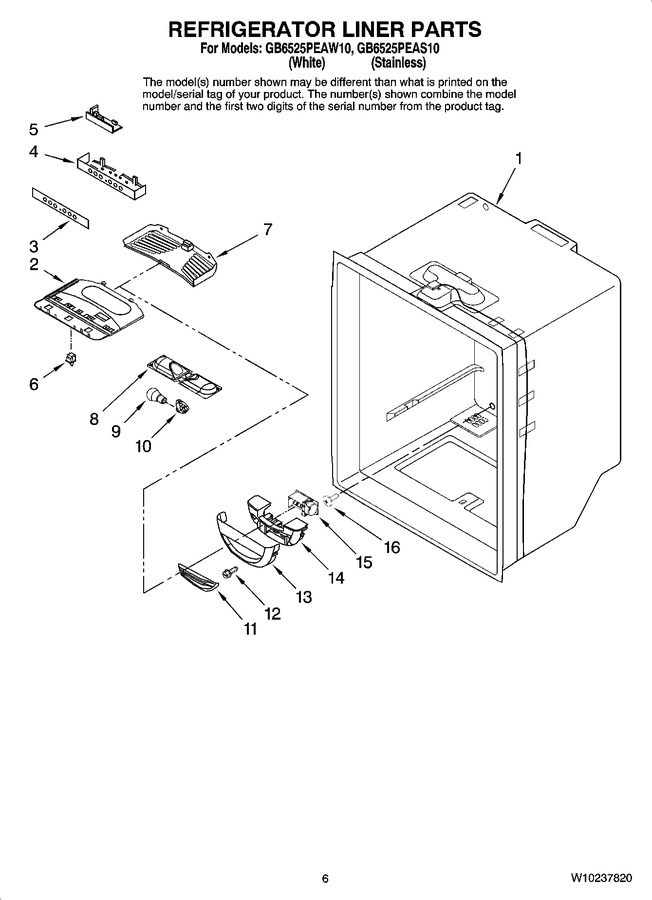

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | Y67003896 | Module, Light |
|
- | |||||
| 3 | 67005072 | Overlay |
|
- | |||||
| 4 | WPW10464769 | Module, Control (Replaces: W10185244) |
|
Immediately | $ 113.76 | ||||
| 5 | WPW10708492 | Board, Control (incl Instr Sheet) (Replaces: W10206638) |
|
$ 265.67 | |||||
| 6 | W11384469 | Switch, Light (Replaces: C3680310) |
|
Immediately | $ 39.09 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 67003897) |
|
$ 106.02 | |||||
| 8 | 12806601 | Housing, Light (Replaces: 67003901) |
|
$ 110.20 | |||||
| 9 | WP67002552 | Bulb, Light (2) (Replaces: 67002552) |
|
Immediately | $ 12.34 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: W10134764) |
|
Immediately | $ 13.87 | ||||
| 11 | 67003900 | Insert, Damper Cover |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (Replaces: 67006602) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 67003899) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation (Replaces: 67006604) |
|
$ 50.15 | |||||
| 15 | W10177399 | Control, Damper (includes Harness) |
|
- | |||||
| 16 | M0310343 | Plug Button White |
|
$ 11.20 | |||||
| NI | 12973503 | Harness, Controls (incl. Thermistor) |
|
- |
