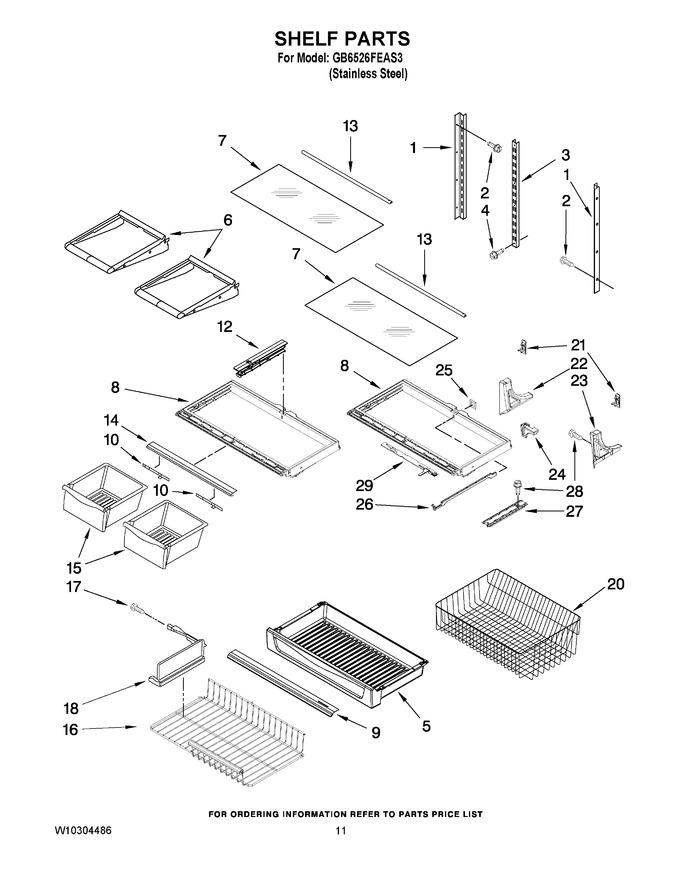

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251969		Ladder, Side				$ 28.30
2	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.57
3	W10273463		Ladder, Center				$ 26.65
4	W10709795		Screw (2)   (Replaces: 12990515)				$ 12.41
5	WPW10328329		Pan, Pantry   (Replaces: 12645020)				$ 145.94
6	W11402521		Shelf, Glide   (Replaces: 12463310)				$ 208.42
7	WP67006878		Glass, Crisper   (Replaces: 12204822)			Immediately	$ 201.12
8	WPW10568041		Frame, Crisper   (Replaces: 12530401SP)			Immediately	$ 142.11
9	W10656985		Trim, Pantry   (Replaces: W10231333)				$ 123.91
10	WP67005864		Slide, Humidity   (Replaces: 12530805SP)			Immediately	$ 7.38
12	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 106.61
13	WP12227303WD		Brace, Crisper Frame   (Replaces: 12227303WD)				$ 100.13
14	W10231341		Trim, Crisper				$ 50.13
15	WP67002633		Pan, Crisper (2)   (Replaces: 12530505SP)			Immediately	$ 155.96
16	12694605		Shelf, Glide (upper)		Appelez-nous	-
17	12990601N		Screw		Appelez-nous	-
18	12693802N		Divider, Upper Basket		Appelez-nous	-
20	12754804		Basket, Freezer (lower)				$ 97.34
21	WP67001716		Ladder-hook   (Replaces: 12531802)			Immediately	$ 10.03
22	WP67001721		Support, Lh   (Replaces: 12531001)			Immediately	$ 7.83
23	WP67001722		Support, Rh   (Replaces: 12531002)			Immediately	$ 8.04
24	WP12531601		Tunnel, Pantry   (Replaces: 12531601)				$ 9.94
25	12531701		Gasket, Pantry		Appelez-nous	-
26	12531401		Bar, Control		Appelez-nous	-
27	WP67001719		Track, Deli Drawer   (Replaces: 12531901)			Immediately	$ 8.09
28	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.57
29	12531502		Slide,pantry		Appelez-nous	-
