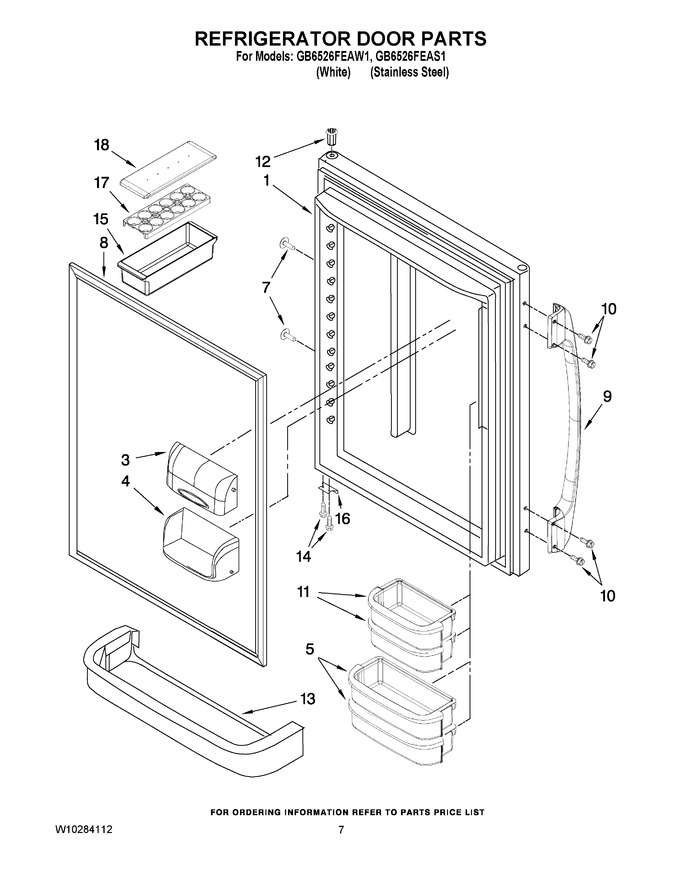

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658530WQ		Refrigerator Door (w/ Insulation) (white)		Appelez-nous	-
1	13023841SQ		Refrigerator Door (w/ Insulation) (stainless)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	67004040		Bucket (2) (medium)   (Replaces: 12801902V)				$ 91.42
7	12991101		Screw, Handle (black)				$ 12.83
8	W10443313		Gasket, Door Magnetic (white)   (Replaces: W10164034)				$ 343.82
8	WPW10436248		Gasket, Door Magnetic (black)   (Replaces: W10164035)				$ 286.97
9	12846204S		Handle, Door (stainless)				$ 393.56
9	12658751W		Handle, Door (white)		Appelez-nous	-
10	12992801		Screw				$ 5.81
11	WP67004041		Door Bucket (2) (small)   (Replaces: 12801901V)				$ 84.77
12	WP67004977		Bushing (white)   (Replaces: 10961006W)				$ 7.81
12	67004978		Bushing (black)   (Replaces: 10961006B)				$ 21.05
13	12690502		Retainer, Door				$ 45.03
14	WP98165		Screw   (Replaces: 12990504)				$ 8.00
15	10423131SP		Bin, Utility		Appelez-nous	-
16	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.05
16	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 65.99
17	10436506S		Tray, Egg		Appelez-nous	-
18	10436404S		Lid-utility		Appelez-nous	-
