Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3196819 Trim, Door Top Appelez-nous -
2 WP3196164 Screw (2)   (Replaces: 3196164) In-Stock Immediately $ 11.03

3 WP179051 Screw (2)   (Replaces: 3196161) In-Stock Immediately $ 8.42

3 WPW10202217 Handle, Door   (Replaces: 3195213) Special Order $ 270.65

4 3186294 Liner, Door Appelez-nous -
8 3186256 Insulation, Door Appelez-nous -
9 W11699790 Retainer, Insul.   (Replaces: 3186298) Appelez-nous -
10 3196073 Hinge, Door (2) Appelez-nous -
11 3186269 Glass, Outer Door Appelez-nous -
12 3195970 Trim, Side (right Hand) Appelez-nous -
12 3195967 Trim, Side (left Hand) Appelez-nous -
13 W10491985 Screw (5)   (Replaces: 3196160) In-Stock Immediately $ 7.55

14 8184858 Trim, Lower   (Replaces: 3195424) Special Order $ 168.85

15 238614 Bumper, Door (2)   (Replaces: 3195809) Special Order $ 84.79

17 3196025 Clip, Glass (4) Special Order $ 20.10

18 WP179051 Screw (2)   (Replaces: 3196161) In-Stock Immediately $ 8.42

19 WP3400832 Screw   (Replaces: 3196168) In-Stock Immediately $ 8.18

20 3195914 Bracket, Latch Appelez-nous -
21 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

21 350956 Paint, Spray 13 Oz. (almond) Special Order $ 54.01

21 261886 Coffee Appelez-nous -
21 261890 Harvest Gold Appelez-nous -
21 285365 Toast Appelez-nous -
21 285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
21 285006 Paint, Spray 13 Oz. (black) Special Order $ 59.89

21 350942 Primer (white)   (Replaces: 206922) Special Order $ 94.14

21 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

21 978883 Almond (uncut) Appelez-nous -
21 261891 Harvest Gold (uncut) Appelez-nous -
21 285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
21 285368 Platinum (uncut) Appelez-nous -
21 241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

21 3191048 Cleaner, Glass Appelez-nous -
21 8273888A Anti-tip Kit   (Replaces: 3176830) Special Order $ 32.62

21 261888 New Avocado Appelez-nous -
21 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

21 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

21 242820 Wire (14 Ga. 150 C Black) Appelez-nous -
21 WP3196175 Screw (4)   (Replaces: 3196165) In-Stock Immediately $ 7.55

21 242828 Wire (12 Ga. 150 C Black) Appelez-nous -
21 242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
21 242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
21 242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
21 242823 Wire (14 Ga. 150 C Green) Appelez-nous -
21 242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
21 242829 Wire, Red 12 Ga. 150~c Appelez-nous -
21 242825 Wire (14 Ga. 150 C Red) Appelez-nous -
21 242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

21 242826 Wire, White 14 Ga. 150~c Appelez-nous -
21 242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
21 242832 Wire, Yellow 14 Ga. 200~c Appelez-nous -
21 799832 Kit. Porcelain Repair (white) Appelez-nous -
21 8212471 Touch-up Self-clean(1/2 Pt)   (Replaces: 242756) In-Stock Immediately $ 87.22

21 261582 Grease Appelez-nous -
21 WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 55.47

21 WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 55.47

21 DD81-03471A Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109) Special Order $ 60.28

21 DD81-03944A Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108) Special Order $ 109.25

21 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

21 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
21 DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

21 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

WP3196154 Screw, Ground   (Replaces: 3196154) Special Order $ 8.44

W11244557 Screw   (Replaces: 3196173) Special Order $ 14.29

3400964 Clip, Wire Harness   (Replaces: 3196520) Special Order $ 89.00

3196488 Harness, Wire (oven) Appelez-nous -
3196696 Clip, Wire Harness (2) Appelez-nous -
3196108 Harness, Wire (door Switch) Appelez-nous -
3196132 Harness, Wire (oven Light) Appelez-nous -
313660 Clip, Ground Wire Appelez-nous -
3184020 Wire, Ground   (Replaces: 311227) Special Order $ 86.92

814381 Door Removal Pin Kit Special Order $ 11.28

LIT3195944 Instructions, Installation Appelez-nous -
LIT3195945 Installation Instr (templet) Appelez-nous -
LIT3196280 Guide, Use & Care Appelez-nous -
LIT3196487 Tech Sheet Appelez-nous -
3196387 Harness, Wire (cooktop) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

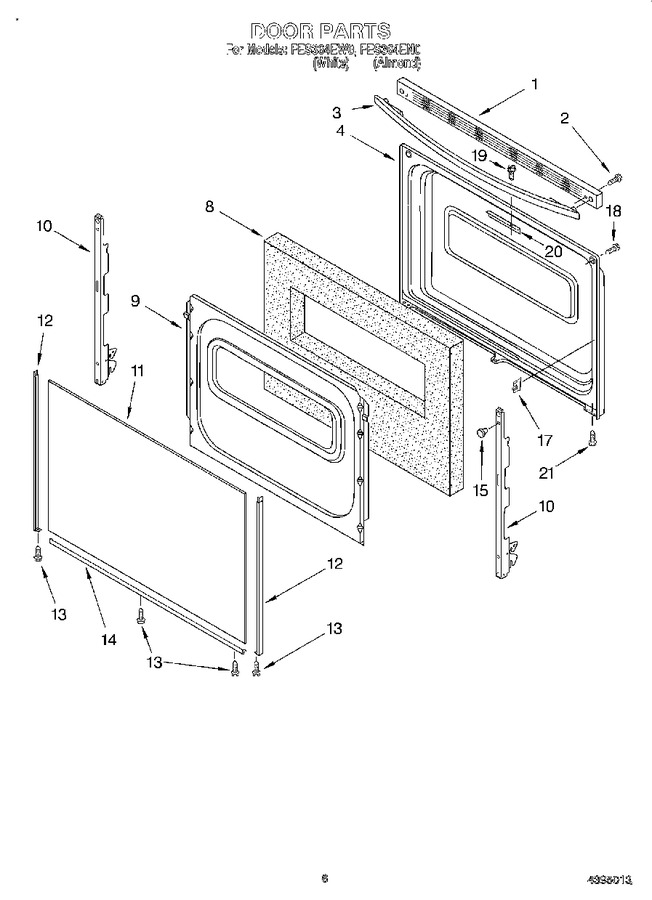

Diagram for FES364EN0
