02 - Cooktop
03 - Control Panel
04 - Door And Drawer
05 - Unit, Lit/optional
06 - Oven
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

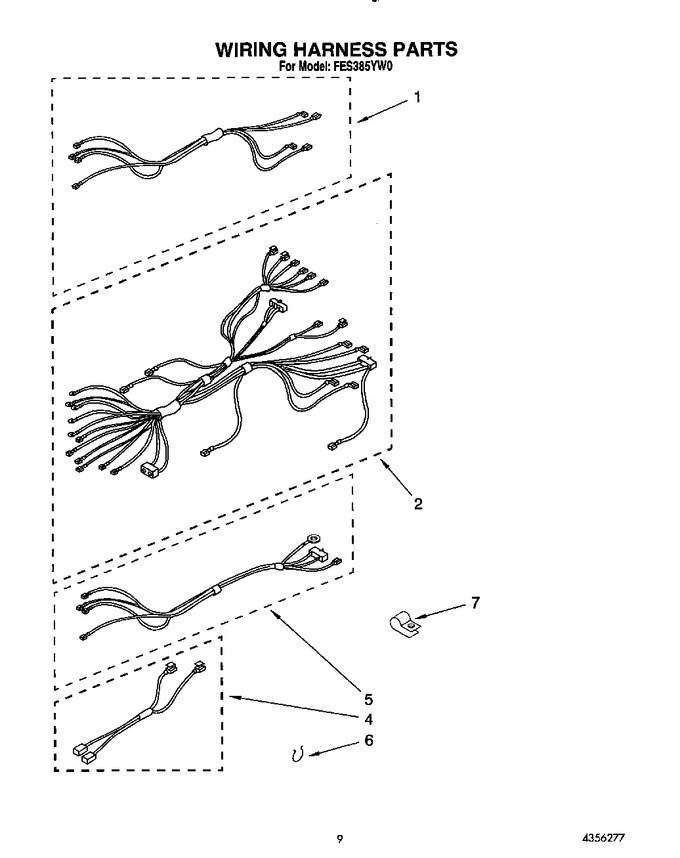

| 1 | 3147129 | Harness, Wire (surface Unit) |
|
- | |||||
| 2 | 3184480 | Harness, Wire (oven) |
|
- | |||||
| 4 | 313154 | Harness, Wire (oven Light) |
|
- | |||||
| 5 | 3184479 | Harness, Wire (lock Switch) |
|
- | |||||
| 6 | 16515 | Harness Clip (Replaces: 313438) |
|
$ 20.53 | |||||
| 7 | WP308605 | Strain Relief (harness, Surface .5) (Replaces: 308605) |
|
$ 11.76 | |||||
| 7 | 308609 | Strain Relief (harness, Oven .75) |
|
- |
