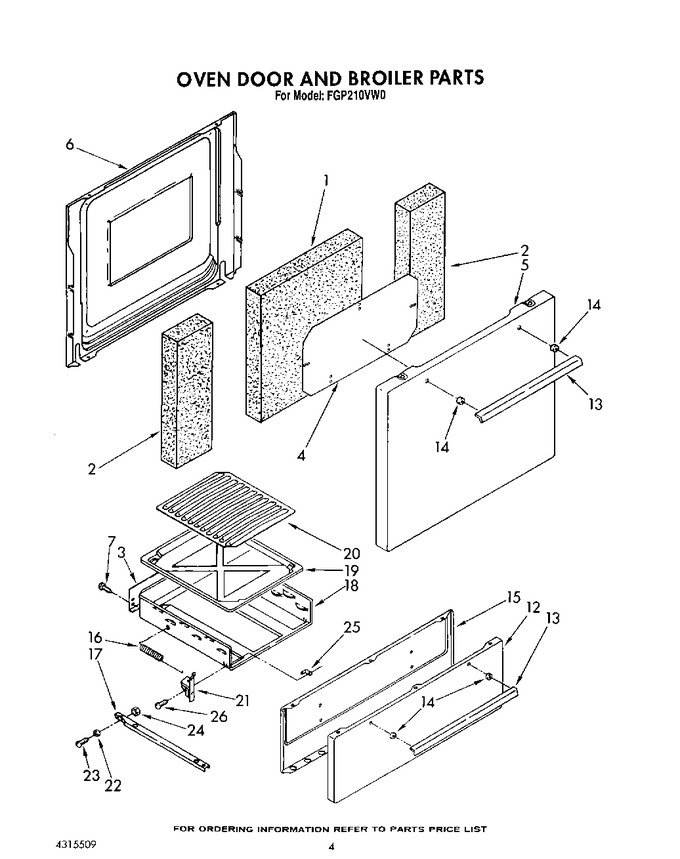

03 - Oven Door And Broiler


04 - Backguard


05 - Cooktop And Manifold, Lit/optional


06 - Internal Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4179320		Insulation		Appelez-nous	-
2	4179321		Insulation		Appelez-nous	-
3	4315521		Broiler Carriage Backer		Appelez-nous	-
4	4157931		Baffle		Appelez-nous	-
5	4179271		Panel, Door (white)		Appelez-nous	-
5	4179272		Panel, Door (almond)		Appelez-nous	-
6	4315068		Liner, Door		Appelez-nous	-
7	4315522		Screw		Appelez-nous	-
12	4315264		Panel, Broiler (white)		Appelez-nous	-
12	WP308685		Panel, Broiler (screw, 10-12 X 1/2 (5))   (Replaces: 4157117)			Immediately	$ 7.87
12	4315265		Panel, Broiler (almond)		Appelez-nous	-
13	4157118		Screw, 10-12 X 5/8 (2)		Appelez-nous	-
13	4157794		Handle, Door (2)		Appelez-nous	-
13	4157119		Washer (2)		Appelez-nous	-
14	4157041		Spacer (4)		Appelez-nous	-
15	4315090		Liner, Broiler Door		Appelez-nous	-
16	4157043		Spring (2)		Appelez-nous	-
17	4315383		Track, Upper (2)		Appelez-nous	-
18	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157117)			Immediately	$ 7.87
18	4315520		Liner, Broiler		Appelez-nous	-
19	4396923		Pan, Broiler   (Replaces: 4315095)			Immediately	$ 60.71
20	4315094		Grid		Appelez-nous	-
21	4157049		Hinge, Door (l.h.)		Appelez-nous	-
21	W10080180		Hinge, Door (screw, 10-24 X 3/8 (2))   (Replaces: 4157120)				$ 14.15
21	4157048		Hinge, Door (r.h.)		Appelez-nous	-
21	WP308685		Hinge, Door (screw, 10-12 X 1/2 (4))   (Replaces: 4157111)			Immediately	$ 7.87
22	4157050		Roller (2)		Appelez-nous	-
23	4157051		Pin, Roller (2)		Appelez-nous	-
24	W10080180		Nut (4)   (Replaces: 4157745)				$ 14.15
25	4157053		Plate (2)		Appelez-nous	-
26	4157054		Screw (2)		Appelez-nous	-
