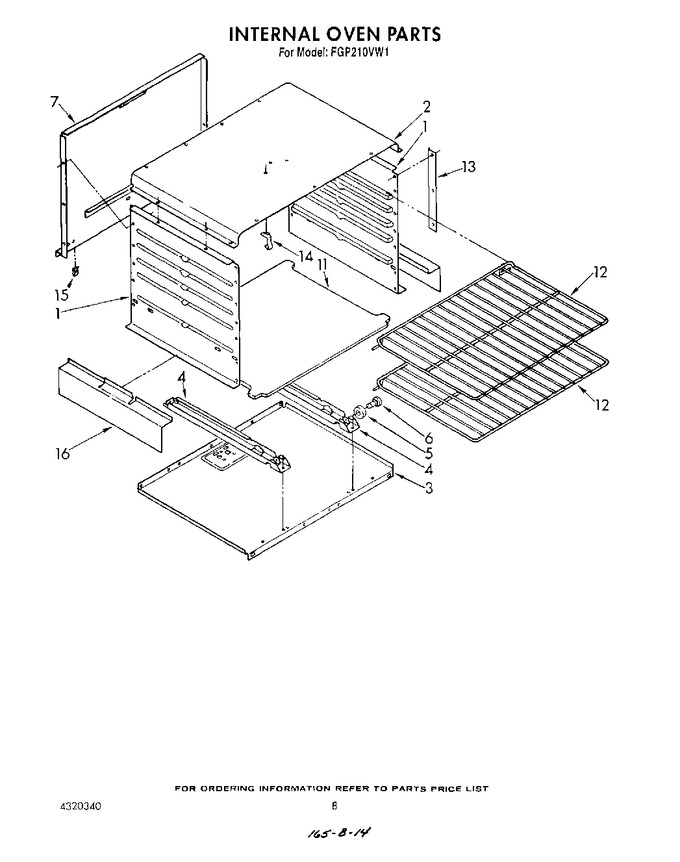

06 - Internal Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.87
1	4315042		Liner, Oven Side (2)		Appelez-nous	-
2	4315048		Liner, Oven Top		Appelez-nous	-
2	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157111)			Immediately	$ 7.87
3	4315415		Baffle, Bottom		Appelez-nous	-
4	4315385		Right		Appelez-nous	-
4	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157111)			Immediately	$ 7.87
4	4315384		Left		Appelez-nous	-
4	4157007		Track, Broiler (2)		Appelez-nous	-
5	4315388		Roller (2)		Appelez-nous	-
6	4315381		Pin, Roller (2)		Appelez-nous	-
7	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 4157117)			Immediately	$ 7.87
7	4315060		Liner, Oven Back		Appelez-nous	-
11	4315074		Bottom, Oven		Appelez-nous	-
12	4157927		Rack, Oven (2)		Appelez-nous	-
13	4157328		Support, Liner (2)		Appelez-nous	-
14	98005642		Clip, Thermo Bulb   (Replaces: 4157329)			Immediately	$ 87.08
15	4157330		Clip, Speed		Appelez-nous	-
16	4317331		Shield, Radiation		Appelez-nous	-
