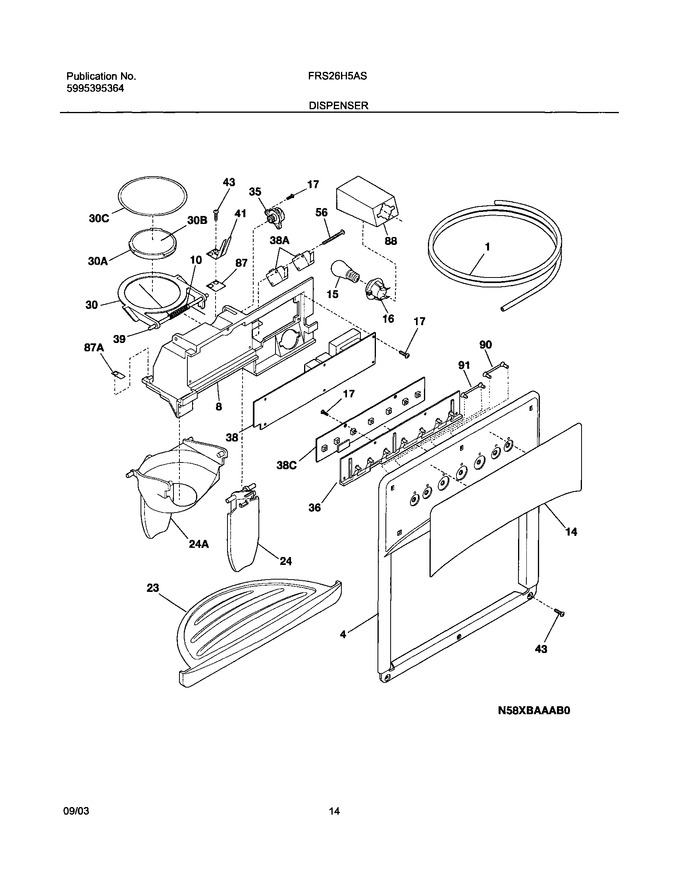

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water			Immediately	$ 66.94
4	241678703		Cover-module,black   (Replaces: 5304422012)			Immediately	$ 83.35
8	5304422013		Module-dispenser		Appelez-nous	-
10	241688901		Spring-torsion   (Replaces: 5304426649)			Immediately	$ 23.63
14	240323910		Label-module Cover,black		Appelez-nous	-
15	5304421616		Light Bulb				$ 32.45
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 70.78
17	241679801		Screw   (Replaces: 5304421619)				$ 15.75
23	241649003		Drip Tray,black   (Replaces: 240323603)				$ 68.51
24	241682003		Actuator-water,black   (Replaces: 5304422026)			Immediately	$ 61.81
30	241688401		Door Assy-ice Chute   (Replaces: 5304421628)				$ 55.13
35	241689301		Damper-rotary   (Replaces: 5304421620)				$ 78.36
36	5304421824		Carrier		Appelez-nous	-
38	5304430812		Power Board		Appelez-nous	-
39	241688801		Pin-hinge   (Replaces: 5304421627)				$ 48.04
41	241689001		Spring-actuator   (Replaces: 5304421829)				$ 24.41
43	215296300		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head   (Replaces: 5304421830)				$ 14.96
87	241688302		Bearing Plate   (Replaces: 5304421622)				$ 22.05
88	5304421615		Shield-light		Appelez-nous	-
90	5304421831		Light Pipe,reflector				$ 22.52
91	5304421850		Light Pipe,reflector ,short		Appelez-nous	-
24A	241681903		Actuator-ice,black   (Replaces: 5304422025)			Immediately	$ 92.93
30A	241688501		Door Center   (Replaces: 5304421624)				$ 58.85
30B	241688601		Insulation-door   (Replaces: 5304421625)				$ 70.19
30C	241688701		Door Seal   (Replaces: 5304421629)				$ 44.95
38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 5304421617)			Immediately	$ 9.56
38C	5304430811		Harness-ribbon Cable		Appelez-nous	-
38C	5304430991		Board-control		Appelez-nous	-
87A	241688301		Bearing Plate   (Replaces: 5304421621)				$ 22.05
NI	5304426535		Insulator-electrical		Appelez-nous	-
NI	218976903		Tube-water Inlet,inlet Valve ,to Filter				$ 77.96
NI	218976907		Tube-water Inlet,valve To Door				$ 67.73
NI	5303918256		Dispenser Heater Kit				$ 526.84
NI	218976901		Tube-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 90.56
