Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4315068 Liner, Door Appelez-nous -
4 4179272 Panel, Door (almond) Appelez-nous -
4 WP308685 Panel, Door (screw, 10-12 X 1/2 (5))   (Replaces: 4157117) In-Stock Immediately $ 7.87

4 4179271 Panel, Door (white) Appelez-nous -
5 WP681414 Screw, 10-12 X 1/2 (5)   (Replaces: 4157114) In-Stock Immediately $ 8.47

5 4157931 Baffle, Door Appelez-nous -
7 4179320 Insulation Appelez-nous -
8 4179321 Insulation (2) Appelez-nous -
12 WP308685 Panel, Broil (screw, 10-12 X 1/2 (5))   (Replaces: 4157117) In-Stock Immediately $ 7.87

12 4315264 Panel, Broil (white) Appelez-nous -
12 4315265 Panel, Broil (almond) Appelez-nous -
13 4157119 Washer (2) Appelez-nous -
13 4157118 Screw, 10-12 X 5/8 (2) Appelez-nous -
13 4157794 Handle, Door (2) Appelez-nous -
14 4157041 Spacer (4) Appelez-nous -
15 4315087 Liner, Broiler Door Appelez-nous -
16 4157043 Spring (2) Appelez-nous -
17 4315383 Track, Upper (2) Appelez-nous -
17 WP308685 Screw, 10-12 X 1/2 (4)   (Replaces: 4315391) In-Stock Immediately $ 7.87

18 4315520 Carriage, Broiler Appelez-nous -
18 WP308685 Screw, 10-12 X 1/2 (4)   (Replaces: 4157117) In-Stock Immediately $ 7.87

19 4396923 Pan, Broiler   (Replaces: 4315095) In-Stock Immediately $ 60.71

20 4315094 Grid Appelez-nous -
21 4157048 Hinge, Door (r.h.) Appelez-nous -
21 W10080180 Hinge, Door (nut)   (Replaces: 4157120) Special Order $ 14.15

21 WP308685 Hinge, Door (screw, 10-12 X 1/2 (4))   (Replaces: 4157111) In-Stock Immediately $ 7.87

21 4157049 Hinge, Door (l.h.) Appelez-nous -
22 4315387 Bumper, Nylon (4) Appelez-nous -
23 4315388 Roller (2) Appelez-nous -
24 4315381 Pin, Roller (2) Appelez-nous -
25 4157053 Plate (2) Appelez-nous -
26 4157054 Screw (2) Appelez-nous -
27 4315521 Backer, Carriage Appelez-nous -
28 4315522 Screws (3) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

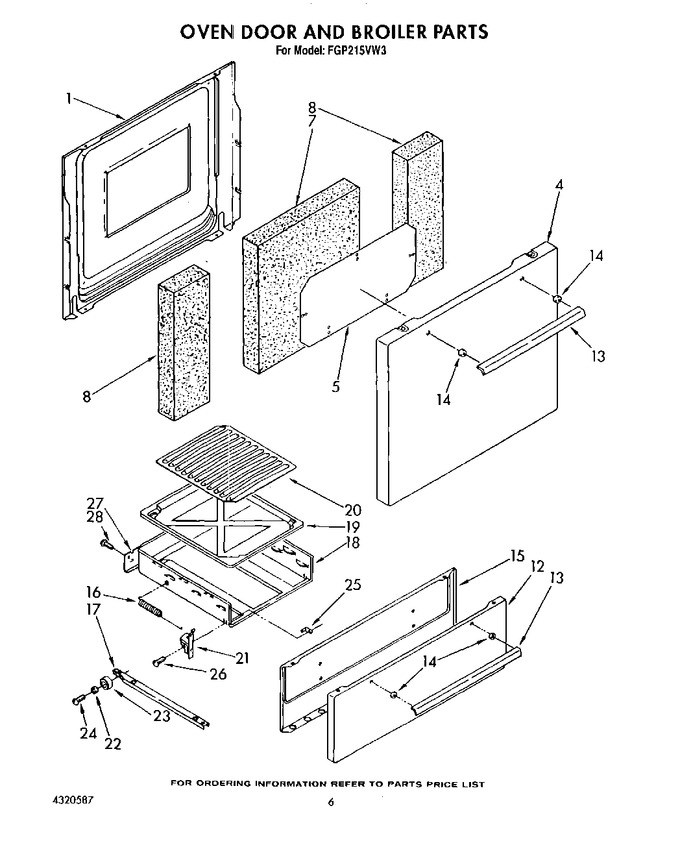

Diagram for FGP215VW3
